VE8602Q

VE8602Q

60V Industrial/Automotive Step-Up Controller

Synchronous Boost, Current-Mode Control

The VE8602Q is a 60V synchronous boost controller that employs current-mode control with cycle-by-cycle peak current limiting or hiccup mode OCP. It also features DEM mode (Diode Emulation Mode) to optimize light-load efficiency.

data table VE8602Q Datasheet
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100 Grade 1 certified

Supports frequency dithering

Input voltage range: 4V - 65V

Output voltage range: 0.8V - 65V

Switching frequency: 100kHz - 1MHz

Quasi-bypass mode

Supports external synchronization with 180-degree phase-shifted clock

Peak current control mode

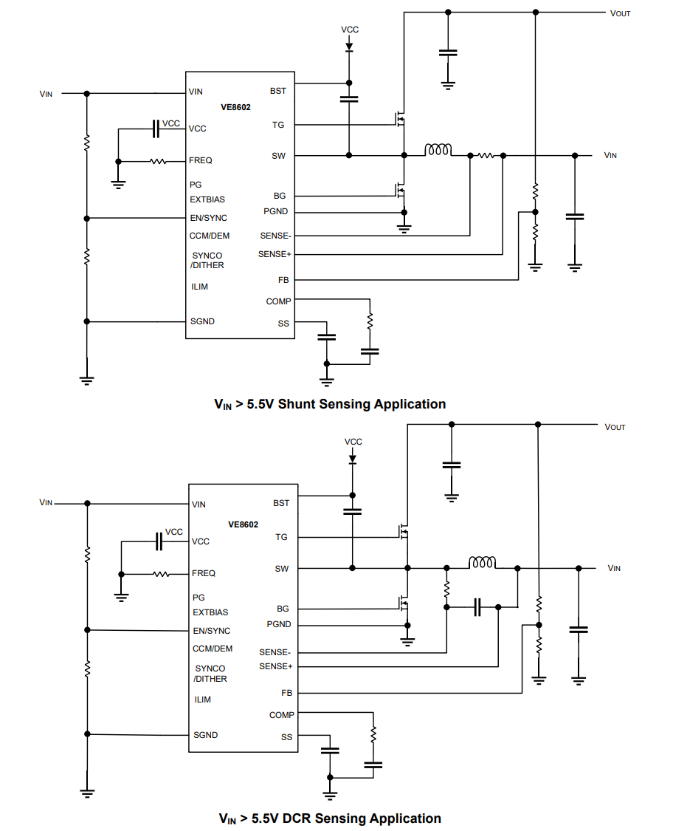

Resistor or inductor DCR current sampling capability

Selectable PFM or FPWM mode

Comprehensive high-reliability protection functions (short-circuit, over-temperature hysteresis, overcurrent, overvoltage protection, etc.)

Package: QFN-20 (3x4) and TSSOP-20

Ordering Information

Ordering Information Mark Class Temperature Range Package Pack Quantity
VE8602EC-TR 8602 I -40 to +125°C TSSOP20-EP TR 4000
VE8602QE-TR 8602 I -40 to +125°C QFN3x4-20 TR 5000
VE8602EC-TR-Q 8602 Q -40 to +125°C TSSOP20-EP TR 4000
VE8602QE-TR-Q 8602 Q -40 to +125°C QFN3x4-20 TR 5000

Product Application

Audio Amplifier Power Supply

Pull-handle Audio Amp Board

Power Module

Documents and Resources

Semiment Product Selection Guide

Selection Guide English version
2025-10-22

VE8602Q Datasheet

Datesheet English version
2025-10-24

Application Note for VE8602Q

Application Note

video

The VE8602Q is a 60V synchronous boost controller that employs current-mode control with cycle-by-cycle peak current limiting or hiccup mode OCP. It also features DEM mode (Diode Emulation Mode) to optimize light-load efficiency.
