VE8600Q

Products

Power Management ICs

Buck Controller

VE8600Q

60V Industrial/Automotive Step-Down Controller

Peak Current Control Architecture with Comprehensive Protection Features

The VE8600Q is a high-voltage synchronous buck controller capable of directly stepping down voltages up to 60V. It employs a peak current control architecture and incorporates comprehensive protection features (OVP/OCP/OTP). It is primarily used in automotive electronics and industrial power module applications.

data table

VE8600Q Datasheet

English version

Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100 Grade 1 certified

Supports frequency dithering

Input voltage range: 4V to 65V

Output voltage range: 0.8V to 65V

Output accuracy: ±1% over full temperature range

Switching Frequency: 100KHz-1MHz

External Synchronization Support with 180-Degree Phase-Shifted Clock

Peak Current Control Mode

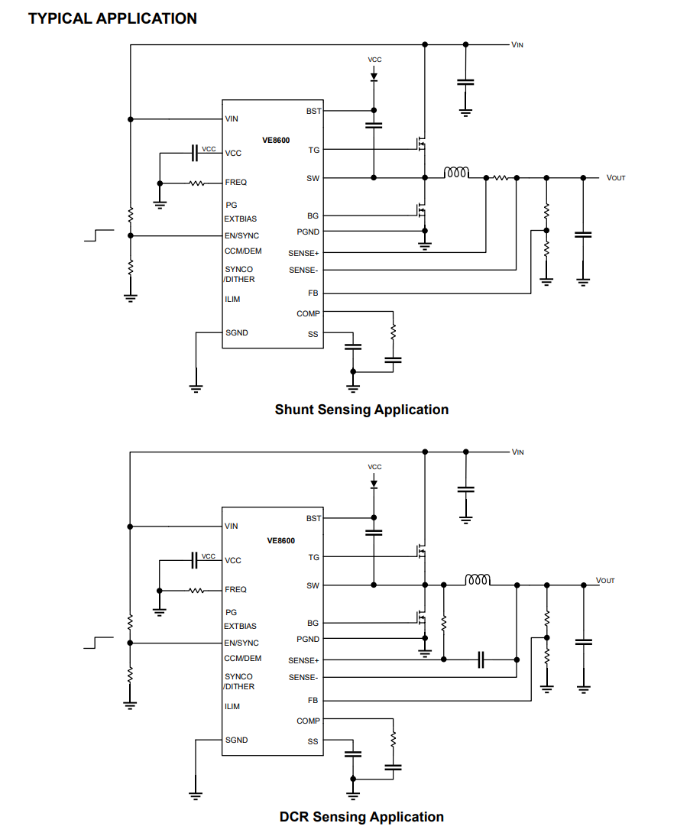

Resistor or Inductor DCR Current Sampling Functionality

Selectable PFM or FPWM Modes

Comprehensive High-Reliability Protection (Short-Circuit, Overtemperature Hysteresis, Overcurrent, Overvoltage, etc.)

Package: QFN-20 (3x4) and TSSOP-20

Ordering Information

Ordering Information	Mark	Class	Temperature Range	Package	Pack	Quantity
VE8600EC-TR	8600	I	-40 to +125°C	TSSOP20-EP	TR	4000
VE8600QE-TR	8600	I	-40 to +125°C	QFN3x4-20	TR	5000
VE8600EC-TR-Q	8600	Q	-40 to +125°C	TSSOP20-EP	TR	4000
VE8600QE-TR-Q	8600	Q	-40 to +125°C	QFN3x4-20	TR	5000

Product Application

Cockpit Domain Controller

Power Module

Marine Power Module

Documents and Resources

Product selection guide

Semiment Product Selection Guide

Selection Guide English version

2025-10-22

Product Specification

VE8600Q Datasheet

Datesheet English version

2025-10-24

Application Documents

Application Note for VE8600Q

Application Note
