VE2220

VE2220

20V/20A parallel-capable buck converter

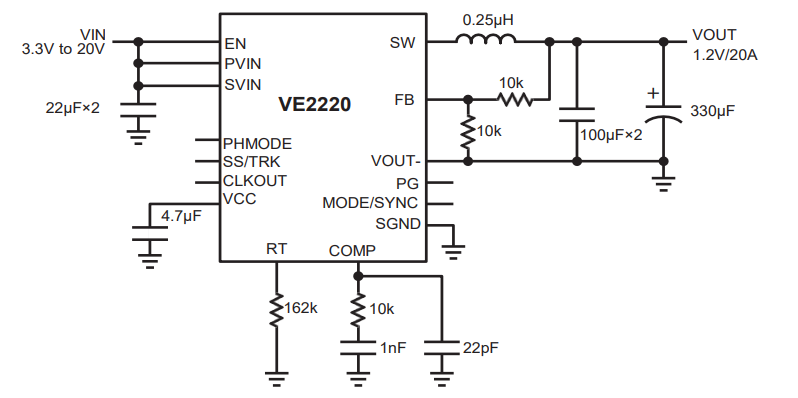

The VE2220 is a high-efficiency monolithic synchronous buck regulator operating from a 3.3 V to 20 V supply voltage range with a load capability up to 20 A. It employs a phase-locked controllable on-time constant-frequency current-mode architecture. Multi-phase operation allows multiple VE2220 regulators to operate out of phase.

data table VE2220 Data Sheet
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

High-voltage, high-current, low-EMI design

Input voltage range: 3.3V to 20V

Output voltage range: 0.6V to 5.5V

Single chip: 20A

Supports 12-channel multi-phase parallel operation, achieving 240A output current

Switching Frequency: 400kHz-3MHz adjustable

Reference Voltage: 0.6V ±1% (full temperature accuracy)

High-precision differential output remote sensing

Programmable soft-start

Excellent external clock synchronization capability

Fast load dynamic response

Supports CCM and DCM operating modes

BGA Package: 5mm×6mm/42-lead

Ordering Information

Ordering Information Mark Temperature Range Package Pack Quantity
VE2220CS-TY 2220 -40 to +125°C FCBGA5x6-42 TY 490
VE2220P QFN20 -40 to +125°C

Product Application

GPU Power Supply

AI Card/CPU

Power Module

Documents and Resources

Semiment Product Selection Guide

Selection Guide English version
2025-10-22

VE2220 Data Sheet

Datesheet English version
2025-11-21

Application Note for VE2220

Application Note

video

The VE2220 is a high-efficiency monolithic synchronous buck regulator operating from a 3.3 V to 20 V supply voltage range with a load capability up to 20 A. It employs a phase-locked controllable on-time constant-frequency current-mode architecture. Multi-phase operation allows multiple VE2220 regulators to operate out of phase.
