Square Wave Output Two-Wire Differential Speed Sensor IC
Integrated active magnetic sensor based on Hall technology, suitable for ABS control systems and iTPMS systems
The SC968x is an integrated active magnetic sensor based on Hall technology, suitable for wheel speed detection in ABS control systems and iTPMS systems. Its primary function is to measure the speed and direction of magnetic wheels or ferromagnetic gears. It features a two-wire current interface and communicates via square wave, PWM, or AK protocols. The chip utilizes a TS-2 package with a matte tin plating finish and halogen-free green material: meeting environmental compliance requirements.
SC9683TS Datasheet
Characteristics and advantages
AEC-Q100 Grade0 qualified
IS026262 ASIL-B qualified

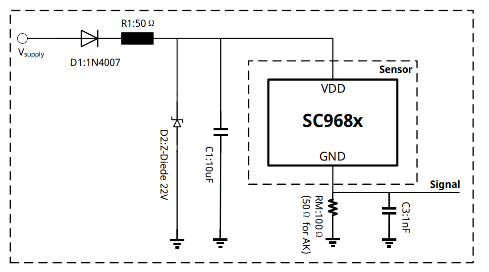

Two-wire current interface
measures speed and direction
Square Wave, PWM, and AK Protocol Output
Fixed and Adaptive Hysteresis Types
Supports Vibration Suppression
South and North Pole Back Magnet Supported
-40℃ to 150℃ operating temperature range
Single-Chip solution，PCB_Less
Package：TS-2
Ordering Information
| Ordering Information | Marking | Option | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC9682TS-TR-Q | 9682 | Square | Q | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
| SC9683TS-TR-Q | 9683 | PWM | - | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
| SC9684TS-TR-Q | 9684 | AK | Q | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
Product Application
ABS Wheel Speed Sensor
Documents and Resources
Semiment Product Selection Guide
SC9683TS Datasheet
Application Note for SC9683TS
The SC968x is an integrated active magnetic sensor based on Hall technology, suitable for wheel speed detection in ABS control systems and iTPMS systems. Its primary function is to measure the speed and direction of magnetic wheels or ferromagnetic gears. It features a two-wire current interface and communicates via square wave, PWM, or AK protocols. The chip utilizes a TS-2 package with a matte tin plating finish and halogen-free green material: meeting environmental compliance requirements.
