Two-Wire Current PWM Output High Accuracy Speed Sensor IC
Utilizing a high-voltage BiCMOS process, it achieves high EMC immunity, along with excellent stability in precision and sensitivity.

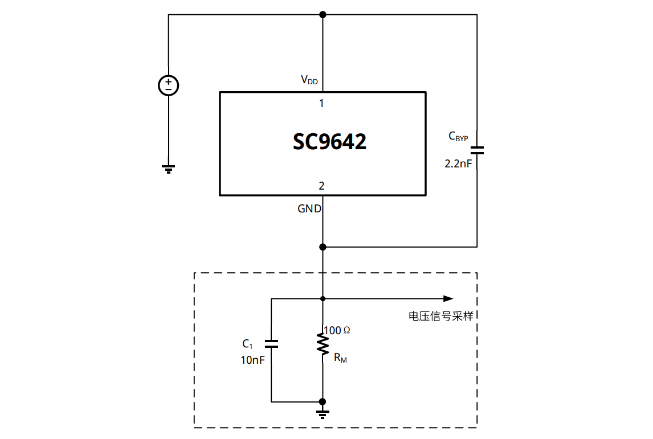

SC9642 is a two-wire current output wheel speed sensor based on pulse width modulation (PWM) principle, which can provide speed, rotation direction and installation distance information. The chip adopts the high-pressure BiCMOS process, that can achieve high EMC protection ability, and the accuracy and sensitivity are relatively stable at full temperature, which is very suitable for the harsh automotive electronic environment.
SC9642TS Datasheet
Characteristics and advantages
Two-wire current interface
PWM protocol，detection of speed and rotation direction
Airgap and Assembly position diagnosis
Dynamic self-calibration principle
High sensitivity
South and North pole pre-induction possible
PCB-Less
-40℃ to 150℃ operating temperature range
4.5V to 24V operating voltage range
Over-molded capacitor for improved EMC
performance
AEC-Q100 Grade0 qualified
Package：TS-2
Ordering Information
| Ordering Information | Marking | Option | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC9642TS-TR-Q | 9642 | - | Q | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
| SC9642TS-E-TR | 9642 | E | - | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
| SC9642TS-E-TR-Q | 9642 | E | Q | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
| SC9642TS-EC-TR-Q | 9642 | EC | Q | -40 ~ 150 | TS-2 | Tape & reel | 1500/reel |
Product Application
Wheel Speed
ABS Wheel Speed Sensor
Documents and Resources
Semiment Product Selection Guide
SC9642TS Datasheet
Application Note for SC9642TS
SC9642 is a two-wire current output wheel speed sensor based on pulse width modulation (PWM) principle, which can provide speed, rotation direction and installation distance information. The chip adopts the high-pressure BiCMOS process, that can achieve high EMC protection ability, and the accuracy and sensitivity are relatively stable at full temperature, which is very suitable for the harsh automotive electronic environment.
