Two-Wire Current Square Output High Accuracy Speed Sensor IC
Square Wave Output, High Precision, High Sensitivity, and Wide Operating Voltage & Temperature Range
The Hall Effect sensor SC9641 is designed to provide information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two-wire current interface, square wave output, high accuracy and sensitivity, with a wide operating temperature and voltage range. High ESD and EMC robustness make it ideal for harsh automotive requirements. The regulated current output is configured for two-wire applications , can detect magnetic rings and ferromagnetic materials.The device is packaged in a TS-2. It is lead (Pb) free,with 100% matte tin-plated lead frame.
SC9641TS-PC Datasheet
Characteristics and advantages
Two-wire current interface
High sensitivity
South and North pole pre-induction possible
Large air gap
Single chip solution
-40℃ to 150℃ operating temperature range
Interior integrated capacitor against electrical disturbances
AEC-Q100 Grade0 qualified
Package：TS-2
Ordering Information
| Ordering Information | Marking | Option | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC9641TS-TR-Q | 9641 | - | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-P-BK | 41CPA | P | - | -40 ~ 150℃ | TS-2 | Bulk | 500/bag |
| SC9641TS-P-TR | 41CPA | P | - | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-P-TR-Q | 9641P | P | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-PC-TR-Q | 9641P | PC | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |

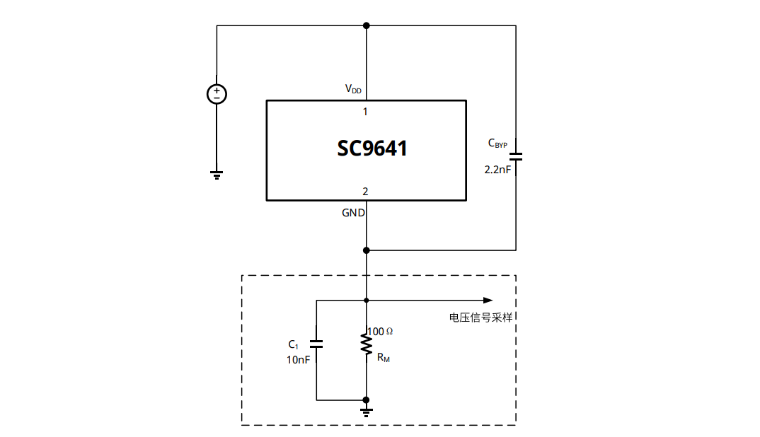

Product Application
Documents and Resources
Semiment Product Selection Guide
SC9641TS-PC Datasheet
Application Note for SC9641TS-PC
The Hall Effect sensor SC9641 is designed to provide information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two-wire current interface, square wave output, high accuracy and sensitivity, with a wide operating temperature and voltage range. High ESD and EMC robustness make it ideal for harsh automotive requirements. The regulated current output is configured for two-wire applications , can detect magnetic rings and ferromagnetic materials.The device is packaged in a TS-2. It is lead (Pb) free,with 100% matte tin-plated lead frame.
