Two-Wire Current Square Output High Accuracy Speed Sensor IC
Square Wave Output, High Precision, High Sensitivity, and Wide Operating Voltage & Temperature Range
The Hall Effect sensor SC9641 is designed to provide information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two-wire current interface, square wave output, high accuracy and sensitivity, with a wide operating temperature and voltage range. High ESD and EMC robustness make it ideal for harsh automotive requirements. The regulated current output is configured for two-wire applications , can detect magnetic rings and ferromagnetic materials.The device is packaged in a TS-2. It is lead (Pb) free,with 100% matte tin-plated lead frame.
SC9641TS Datasheet
Characteristics and advantages
Two-wire current interface
High sensitivity
South and North pole pre-induction possible
Large air gap
Single chip solution
-40℃ to 150℃ operating temperature range
Interior integrated capacitor against electrical disturbances
AEC-Q100 Grade0 qualified
Package：TS-2
Ordering Information
| Ordering Information | Marking | Option | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC9641TS-TR-Q | 9641 | - | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-P-BK | 41CPA | P | - | -40 ~ 150℃ | TS-2 | Bulk | 500/bag |
| SC9641TS-P-TR | 41CPA | P | - | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-P-TR-Q | 9641P | P | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |
| SC9641TS-PC-TR-Q | 9641P | PC | Q | -40 ~ 150℃ | TS-2 | Tape & reel | 1500/reel |

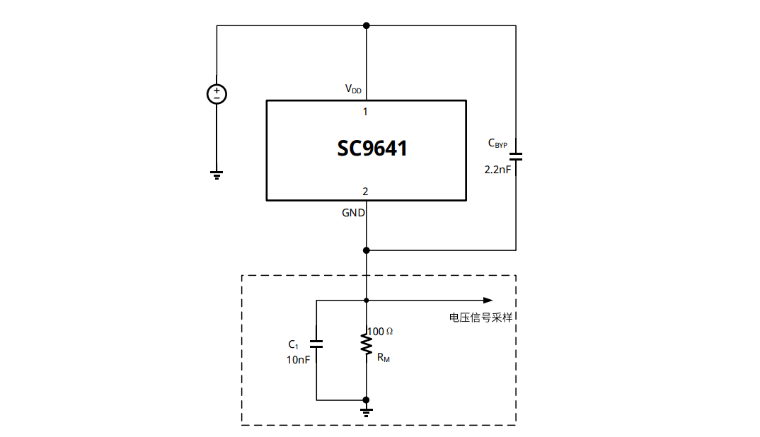

Product Application
ABS Wheel Speed Sensor
EMB
Documents and Resources
Semiment Product Selection Guide
SC9641TS Datasheet
Application Note for SC9641TS
The Hall Effect sensor SC9641 is designed to provide information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two-wire current interface, square wave output, high accuracy and sensitivity, with a wide operating temperature and voltage range. High ESD and EMC robustness make it ideal for harsh automotive requirements. The regulated current output is configured for two-wire applications , can detect magnetic rings and ferromagnetic materials.The device is packaged in a TS-2. It is lead (Pb) free,with 100% matte tin-plated lead frame.
