Dual Channel Real-time 12-Bit Inductive Rotary Encoder IC
Copyright
Non-magnetic, Non-contact Inductive Position Sensor Integrated Circuit

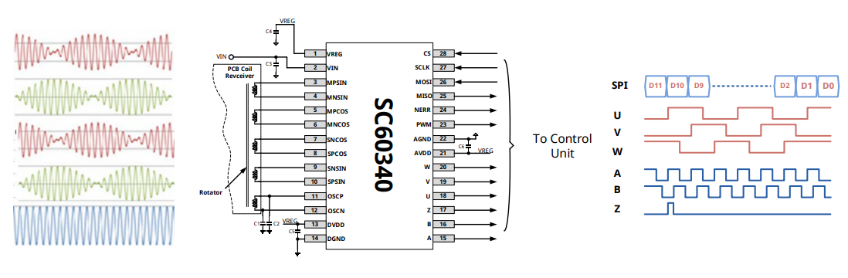

SC60340 is a non-magnetic, non-contact coil inductive position sensor IC. The Device uses the physical principle of eddy current to detect the position of a simple metal target moving above the coil, so as to measure the signal output. The SC60340 can be used for high-speed absolute position detection in automotive, industrial, medical and consumer applications.
SC60340 Datasheet
Characteristics and advantages
0.1° phase accuracy
64-step phase programmability
Jitter suppression function
Dynamic self-calibration function
Supports PCB-LESS packaging
Complies with AEC-Q100 automotive certification
Suitable for special operating conditions of engines in hybrid and range-extended vehicles
Ordering Information
| Ordering Information | Mark | Ambient(℃) | Package | Pack | Quantity |
|---|---|---|---|---|---|
| SC60340ST-TB | 60340 | -40~125 | SSOP28 | Tube | 48/tube |
| SC60340ST-TR | 60340 | -40~125 | SSOP28 | Reel | 2000/reel |
Product Application
Encoder Module
Documents and Resources
Semiment Product Selection Guide
SC60340 Datasheet
Application Note SC60340
SC60340 is a non-magnetic, non-contact coil inductive position sensor IC. The Device uses the physical principle of eddy current to detect the position of a simple metal target moving above the coil, so as to measure the signal output. The SC60340 can be used for high-speed absolute position detection in automotive, industrial, medical and consumer applications.
