15Mbps Communication Transceiver
Slow-Speed Limited Differential Transceiver with ESD Protection

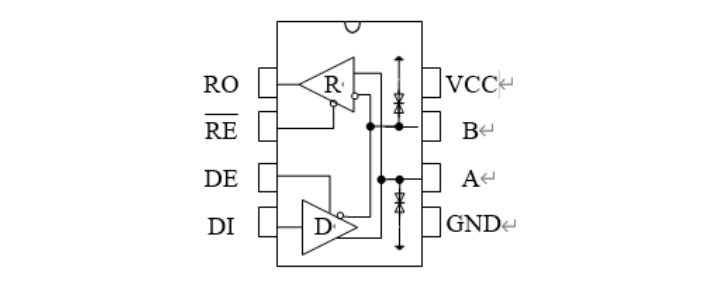

The SI485 operates from 3V to 55V supply, features ±15kV ESD protection, and is a slow-speed limited differential transceiver providing full RS485 compatibility for half-duplex communication. Each section includes a driver and a receiver designed to extend data transmission over a wide common-mode range (-7V to 12V). The SI485 transmits data at rates up to 15Mbps.
SI485E Datasheet
Characteristics and advantages
High communication rate, 3.3V and 5V supply 15Mbps
High ESD protection capability
Low power consumption down to 1μA current in shutdown mode
-7V to +12V common-mode input voltage range
Bus connection for up to 256 nodes
Thermal shutdown protection
Driver overload protection
Full fault protection (open circuit, short circuit, etc.)
Ordering Information
| Ordering Information | Pack | Package | Operating Temperature |
|---|---|---|---|
| SI485EDC-TR | Tape and reel, 3000 pieces/reel | SOP-8 | -40℃ ~ 160℃ |
Product Application
Documents and Resources
Semiment Product Selection Guide
SI485E Datasheet
Application Note for SYLM321SI485E
The SI485 operates from 3V to 55V supply, features ±15kV ESD protection, and is a slow-speed limited differential transceiver providing full RS485 compatibility for half-duplex communication. Each section includes a driver and a receiver designed to extend data transmission over a wide common-mode range (-7V to 12V). The SI485 transmits data at rates up to 15Mbps.
