High Consistency and Symmetry
Semiment's SYLM290xA series of high-voltage universal operational amplifiers employs advanced manufacturing processes and comprehensive automotive-grade quality control throughout production. Featuring dual (SYLM2904A) and quad (SYLM2902A) operational amplifier configurations, these devices utilize specialized circuit design techniques to deliver classic rail-to-rail input/output swing. They exhibit exceptional consistency and symmetry across the entire operating voltage and temperature range.Particularly suited for applications with stringent cost requirements and limited space constraints, these op-amps provide excellent coordination and balance for overall circuit design.
SYLM2904 Datasheet
Characteristics and advantages
Ultra-low input offset voltage: ±3mV
Supply Voltage: 3V to 36V
Supports single or dual supply operation
Low Quiescent Current: 117μA/channel
Low Broadband Noise: 35 nV/√Hz
Rail-to-Rail Input/Output
Unit-Gain Bandwidth: 1.0 MHz
Built-in Overload Fast Recovery for Enhanced Op-Amp Reliability
Operating Temperature Range: -40°C to 125°C
Ordering Information
| Ordering Information | Package | Quantity | Package Code | Humidity Sensitivity Rating | Operating Temperature |
|---|---|---|---|---|---|
| SYLM2904APA1R | 8-Pin SOP | Reel 4000 | PA1 | 3 | -40 to 125°C |
| SYLM2904APA3R | 8-Pin TSSOP | Reel 3000 | PA3 | 3 | -40 to 125°C |
| SYLM2904APA4R | 8-Pin MSOP | Reel 3000 | PA4 | 3 | -40 to 125°C |
| SYLM2902APD1R | 14-Pin SOP | Reel 2500 | PD1 | 3 | -40 to 125°C |
| SYLM2902APD2R | 14-Pin TSSOP | Reel 3000 | PD2 | 3 | -40 to 125°C |

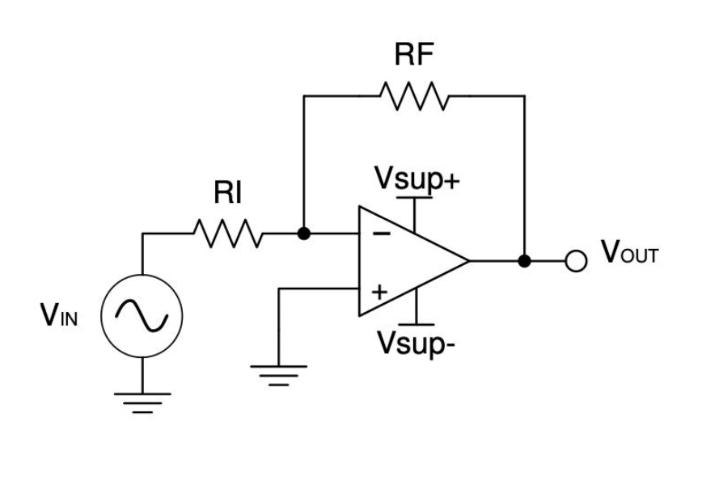

Product Application
Documents and Resources
Semiment Product Selection Guide
SYLM2904 Datasheet
Application Note for SYLM321SYLM2904
Semiment's SYLM290xA series of high-voltage universal operational amplifiers employs advanced manufacturing processes and comprehensive automotive-grade quality control throughout production. Featuring dual (SYLM2904A) and quad (SYLM2902A) operational amplifier configurations, these devices utilize specialized circuit design techniques to deliver classic rail-to-rail input/output swing. They exhibit exceptional consistency and symmetry across the entire operating voltage and temperature range.Particularly suited for applications with stringent cost requirements and limited space constraints, these op-amps provide excellent coordination and balance for overall circuit design.
