High-Voltage Universal Quad Op Amp
High Consistency and Symmetry
SaiZhuo High-Voltage Universal Op-Amp Series - SYLM3xxA, manufactured using advanced processes and fully compliant with automotive standards throughout production, including Single Op-Amp (SYLM321A), dual op-amps (SYLM358A), and quad op-amps (SYLM324A). Employing distinctive circuit design techniques and classic rail-to-rail input/output swing, these devices deliver exceptional consistency and symmetry across the entire operating voltage and temperature range. They are particularly well-suited for applications demanding high cost efficiency and compact space requirements, effectively balancing overall circuit integration.
SYLMV324 Datasheet
Characteristics and advantages
Ultra-low input offset voltage: ±3mV
Supply Voltage: 3V to 36V
Supports single or dual supply operation
Low Quiescent Current: 117μA/channel
Low Broadband Noise: 35 nV/√Hz Rail-to-Rail Input/Output
Bandwidth Gain: 1.0 MHz
Built-in Overload Fast Recovery for Enhanced Op-Amp Reliability
Operating Temperature Range: -40°C to 125°C
Ordering Information
| Ordering Information | Package | Quantity | Package Code | Humidity Sensitivity Rating | Operating Temperature |
|---|---|---|---|---|---|
| SYLM321ASOR | 5-Pin SOT23 | Reel 3000 | SO | 3 | -40 to 125°C |
| SYLM358APA1R | 8-Pin SOP | Reel 4000 | PA1 | 3 | -40 to 125°C |
| SYLM358APA3R | 8-Pin TSSOP | Reel 4000 | PA3 | 3 | -40 to 125°C |
| SYLM358APA4R | 8-Pin MSOP | Reel 3000 | PA4 | 3 | -40 to 125°C |
| SYLM324APD1R | 14-Pin SOP | Reel 2500 | PD1 | 3 | -40 to 125°C |
| SYLM324APD2R | 14-Pin TSSOP | Reel 3000 | PD2 | 3 | -40 to 125°C |

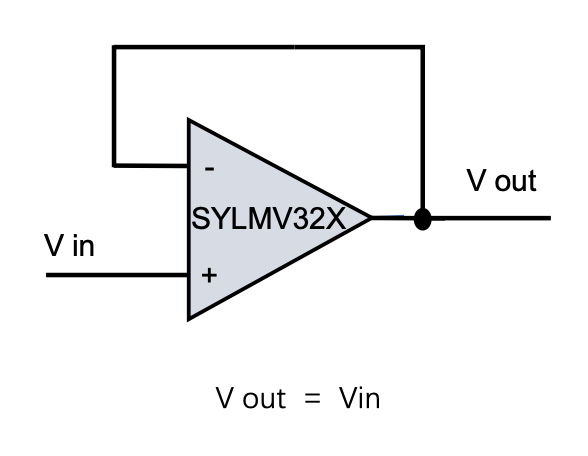

Product Application
Documents and Resources
Semiment Product Selection Guide
SYLMV324 Datasheet
Application Note for SYLM321SYLM324
SaiZhuo High-Voltage Universal Op-Amp Series - SYLM3xxA, manufactured using advanced processes and fully compliant with automotive standards throughout production, including Single Op-Amp (SYLM321A), dual op-amps (SYLM358A), and quad op-amps (SYLM324A). Employing distinctive circuit design techniques and classic rail-to-rail input/output swing, these devices deliver exceptional consistency and symmetry across the entire operating voltage and temperature range. They are particularly well-suited for applications demanding high cost efficiency and compact space requirements, effectively balancing overall circuit integration.
