ZH6332

ZH6332

Integrated Three-Phase Trapezoidal Wave Sensor Driver Chip

Wide Operating Voltage, High Current, Highly Integrated 40V~3A Three-Phase BLDC Driver

ZH6332 is a wide operating voltage, high current, highly integrated three-phase BLDC driver chip. It includes three half-bridges, commutation logic, PWM speed and direction control, and comprehensive protection functions including current limiting, short circuit, overtemperature, undervoltage, overvoltage, and stall protection.The ZH6332's intelligent open-circuit protection logic detects motor terminal open circuits, cold solder joints, and other faults. Upon fault detection, the FLT pin pulls low to signal an alarm. Its simplified external circuitry makes it suitable for driving various permanent magnet synchronous motors.

data table ZH6332 Datasheet
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100 compliant

Configurable current limit protection threshold

Operating temperature: -40°C to 125°C

Operating Voltage: 6V to 40V

Internal Power Transistor On-Resistance: 150mΩ

PWM Speed Control, DIR Direction Control

Short-Circuit Protection, Over-Temperature, Over-Voltage, Under-Voltage Protection

Integrated Current Sampling Circuit, Eliminating Need for Sampling Resistor

Supports Stall Protection Alarm and Open-Circuit Protection Alarm

Parameter Configuration and Fault Diagnosis via UART Communication

Ordering Information

Ordering Information Package Pack Quantity
ZH6332JT TSSOP20 Reel 3000
ZH6332ND QFN20 Reel 3000

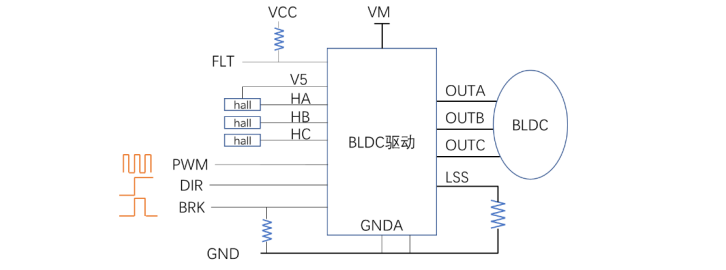

Product Application

Documents and Resources

Semiment Product Selection Guide

Selection Guide English version
2025-10-22

ZH6332 Datasheet

Datesheet download
2025年 10月 24日

Application Note for ZH6332

Application Note

video

ZH6332 is a wide operating voltage, high current, highly integrated three-phase BLDC driver chip. It includes three half-bridges, commutation logic, PWM speed and direction control, and comprehensive protection functions including current limiting, short circuit, overtemperature, undervoltage, overvoltage, and stall protection.The ZH6332's intelligent open-circuit protection logic detects motor terminal open circuits, cold solder joints, and other faults. Upon fault detection, the FLT pin pulls low to signal an alarm. Its simplified external circuitry makes it suitable for driving various permanent magnet synchronous motors.
