ZH6232

ZH6232

Highly Integrated H-Bridge Driver IC

Wide operating voltage, high current, highly integrated 6V~40V / 3A H-bridge driver IC

The ZH62X2 series (ZH6222/ZH6232/ZH6242) is a wide operating voltage, high current, highly integrated H-bridge driver chip. Suffix (C) denotes the classic version, suffix (I) denotes the intelligent version.The intelligent version outputs an FLT alarm signal during short circuits, over-temperature conditions, and other anomalies. Its unique stall protection design triggers immediate alerts when the motor encounters obstacles. Open-circuit protection logic also detects faults if the motor is disconnected or has poor solder joints.

data table ZH6232 Datasheet
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100

ZH6222 Operating Voltage: 6V~20V

ZH6232 Operating Voltage: 6V~30V

ZH6242 Operating Voltage: 6V~40V

Operating Current: 3.6A (Peak)

Operating Temperature: -40℃~125℃

IN1 and IN2 enable bidirectional operation

Internal power transistor conduction resistance: 100mΩ

Short-circuit protection, overtemperature protection, overvoltage protection, undervoltage protection

Supports stall protection alarm and open-circuit protection alarm

Parameter configuration and fault diagnosis via UART communication

Internal configurable reference voltage eliminates need for external sampling resistors

Ordering Information

Ordering Information Package Pack Quantity
ZH6222IJA ESOP8 Reel 4000
ZH6222CJA ESOP8 Reel 4000
ZH6232IJA ESOP8 Reel 4000
ZH6232CJA ESOP8 Reel 4000
ZH6242IJA ESOP8 Reel 4000
ZH6242CJA ESOP8 Reel 4000

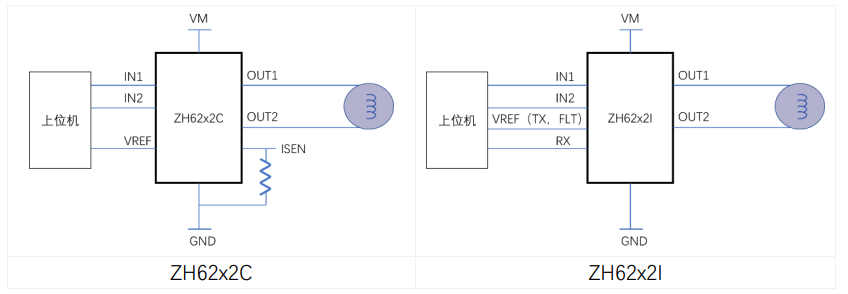

Product Application

Documents and Resources

Semiment Product Selection Guide

Selection Guide English version
2025-10-22

ZH6232 Datasheet

Datesheet download
2025年 10月 24日

Application Note for ZH6232

Application Note

video

The ZH62X2 series (ZH6222/ZH6232/ZH6242) is a wide operating voltage, high current, highly integrated H-bridge driver chip. Suffix (C) denotes the classic version, suffix (I) denotes the intelligent version.The intelligent version outputs an FLT alarm signal during short circuits, over-temperature conditions, and other anomalies. Its unique stall protection design triggers immediate alerts when the motor encounters obstacles. Open-circuit protection logic also detects faults if the motor is disconnected or has poor solder joints.
