High-Performance Ground Fault Circuit Interrupter IC
CMOS process technology, chip protection compatible with both Type A and Type AC, ensuring a guaranteed safety factor
SL002147DC is a high-performance residual current device (RCD) chip manufactured using CMOS technology. The chip integrates a regulated power supply, amplification circuit, comparator circuit, delay circuit, counter circuit, trip control circuit, and trip driver circuit. Peripheral components include a trip coil, varistor, Zener diode, diode, resistors, capacitors, and other elements.
SL002147 Datasheet
Characteristics and advantages
Detects Type A and Type AC leakage signals
High-precision tripping with excellent consistency
Directly drives thyristors, outputting 30ms high-level pulses
Excellent electromagnetic compatibility (EMC)
Compatible with 110V or 220V power systems
Directly powered by AC supply
Temperature range (TA = -20 to 85°C)
Package type: SOP8
Ordering Information
| Ordering Information | Mark | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SL002147DC-TR | 2147 | -20~85 | SOP8 | TR | 4000/reel |

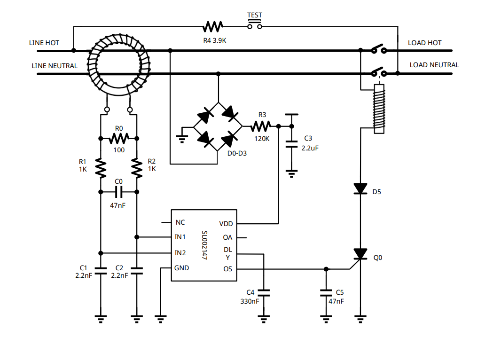

Product Application
Documents and Resources
Semiment Product Selection Guide
SL002147 Datasheet
Application Note for SL002147
SL002147DC is a high-performance residual current device (RCD) chip manufactured using CMOS technology. The chip integrates a regulated power supply, amplification circuit, comparator circuit, delay circuit, counter circuit, trip control circuit, and trip driver circuit. Peripheral components include a trip coil, varistor, Zener diode, diode, resistors, capacitors, and other elements.
