High-Precision Low-Noise Current Sensor with REF/OCD
Plug-in Programmable for Open-Loop Precise Current Detection or Position Detection
The SC4665 is a through-hole programmable Hall sensor designed for open-loop precision current sensing or position detection when paired with a magnetic ring. The SC4665's transfer characteristics are factory-adjusted for temperature drift and are programmable during end-user calibration (offset, sensitivity, filtering, internal overcurrent threshold). Featuring a bandwidth up to 400kHz and fast response time, it is particularly suitable for high-speed applications such as inverters and converters, which require rapid response due to fast switching.
SC4665 Datasheet
Characteristics and advantages
Sensitivity error <1.5%
3.3V-5V supply voltage, optional proportional analog output
Self-test and multiple diagnostic functions:
OTP, OVP, OCD, short circuit detection, etc.
Fixed non-proportional output VREF, supports bidirectional operation
24-bit customer ID
TO-94 package type
Ordering Information
| Order Information | Sens(mV/Gs) | Operating Temp.(℃) | Option | PKG | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC4665VB-A-BK | 0.4~2mV/Gs | -40~125 | Vref | TO-94 | Bulk | 500/bag |
| SC4665VB-B-BK | 2~5mV/Gs | -40~125 | Vref | TO-94 | Bulk | 500/bag |
| SC4665VB-C-BK | 5~10mV/Gs | -40~125 | Vref | TO-94 | Bulk | 500/bag |

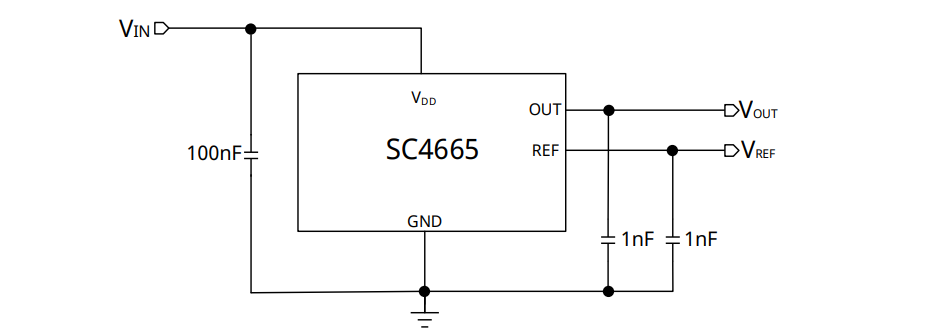

Product Application
Documents and Resources
Semiment Product Selection Guide
SC4665 Datasheet
Application Note for SC4665
The SC4665 is a through-hole programmable Hall sensor designed for open-loop precision current sensing or position detection when paired with a magnetic ring. The SC4665's transfer characteristics are factory-adjusted for temperature drift and are programmable during end-user calibration (offset, sensitivity, filtering, internal overcurrent threshold). Featuring a bandwidth up to 400kHz and fast response time, it is particularly suitable for high-speed applications such as inverters and converters, which require rapid response due to fast switching.
