High-Precision, High-Bandwidth, Programmable Linear Hall Sensor
AEC-Q100 qualified、Programmable、current detection

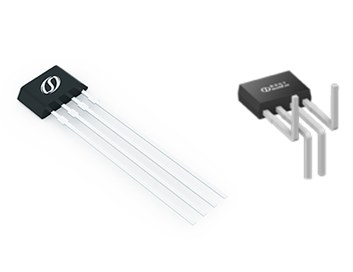

The SC4643 is a programmable linear Hall sensor IC. It integrates an internal magnetic field sensing element, a three-stage variable gain low-noise amplifier, an output stage, a temperature sensor, quiescent output voltage compensation, sensitivity compensation, and an EEPROM control module. It senses the magnetic field perpendicular to the chip surface and converts it into a proportional output voltage (related to sensitivity), very suitable for current detection applications.
SC4643 Datasheet
Characteristics and advantages
AEC-Q100 qualified
Quiescent output voltage
Sensitivity (0.6-14 mV/Gs)
Quiescent voltage and sensitivity Temperature coefficients
Response time as low as 3.7 μs
Bandwidth 120 kHz
Low noise
Operating voltage range 4.5-5.5V
Operating temperature range -40-150 °C
Supply Under-Voltage lockout (UVLO), Output Short-Circuit protection
TO92U & TO94 package, Lead-Free and Halogen-Free
Ordering Information
| Order Information | Sens(mV/Gs) | Operating Temp.(℃) | PKG | Packing | Quantity |
|---|---|---|---|---|---|
| SC4643VB-BK-Q | 0.6-14 | -40 ~ 150 | TO94 | Bulk | 500/bag |
| SC4643VB-TR-Q | 0.6-14 | -40 ~ 150 | TO94 | Tape & Reel | 2000/reel |
| SC4643VB-P-BK-Q | 0.6-14 | -40 ~ 150 | TO94 | Bulk | 500/bag |
| SC4643VB-P-TR-Q | 0.6-14 | -40 ~ 150 | TO94 | Tape & Reel | 2000/reel |
| SC4643VB-G-BK-Q | 0.6-14 | -40 ~ 150 | TO94 | Bulk | 500/bag |
| SC4643VB-G-TR-Q | 0.6-14 | -40 ~ 150 | TO94 | Tape & Reel | 2000/reel |
| SC4643VB-S-BK-Q | 0.6-14 | -40 ~ 150 | TO94 | Bulk | 500/bag |
| SC4643VB-S-TR-Q | 0.6-14 | -40 ~ 150 | TO94 | Tape & Reel | 2000/reel |
| SC4643VB-L-TB-Q | 0.6-14 | -40 ~ 150 | TO94 | Tube | 100/tube |
| SC4643VB-L-TR-Q | 0.6-14 | -40 ~ 150 | TO94 | Tube | 500/tube |
Product Application
BMS
BDU
MCU
PDU
Current Detection
Main Inverter
BMS
Documents and Resources
Semiment Product Selection Guide
SC4643 Datasheet
Application Note for SC4643
The SC4643 is a programmable linear Hall sensor IC. It integrates an internal magnetic field sensing element, a three-stage variable gain low-noise amplifier, an output stage, a temperature sensor, quiescent output voltage compensation, sensitivity compensation, and an EEPROM control module. It senses the magnetic field perpendicular to the chip surface and converts it into a proportional output voltage (related to sensitivity), very suitable for current detection applications.
