Characteristics and advantages
Ultra-low power consumption：-1.2 μA with 3.0 V
1.65V to 5.5V operating range

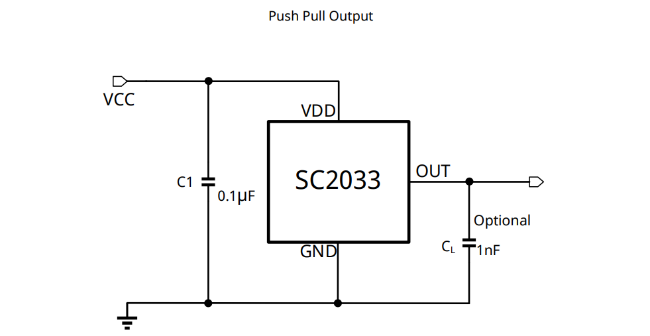

Push-Pull output
–40°C to +85°C operating temperature range
SOT23-3L, TO-92S package options
SC2033
Ultra-Low-Power Unipolar Switch Hall Effect Sensor
Ultra-low power consumption、Push-Pull output、High sensitivity
The SC2033 family is an ultra-low-power Uni-polar switch Hall effect sensor, designed for the most compact and battery sensitive systems. The device is offered in multiple magnetic thresholds, sampling rates, output drivers, and packages to accommodate various applications.
data table
SC2033 Datasheet
SC2033 Datasheet
Ordering Information
| Ordering Information | Mark | Option | Ambient, (℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC2033UA-BK | 2033 | - | -40~85 | TO92S | Bulk | 1000Pcs |
| SC2033SO-N-TR | 2033 | N | -40~85 | SOT23-3L | Reel | 3000Pcs |
| SC2033SO-TR | 2033 | - | -40~85 | SOT23-3L | Reel | 3000Pcs |
Product Application
Bike-sharing Lock
Documents and Resources
Semiment Product Selection Guide
Selection Guide
English version
2025-10-22
SC2033 Datasheet
Datesheet
English version
2025-10-22
SC2033 Datasheet
Application Note
video
The SC2033 family is an ultra-low-power Uni-polar switch Hall effect sensor, designed for the most compact and battery sensitive systems. The device is offered in multiple magnetic thresholds, sampling rates, output drivers, and packages to accommodate various applications.
