High Performance Digital-Latch Hall Effect Sensor
Multiple sensitivity ranges available、AEC-Q100、Reverse battery protection
The SC244X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features. An onboard regulator permits with supply voltages of 2.5V to 24V which makes the device suitable for a wide range of industrial and automotive applications.
SC2443 Datasheet
Characteristics and advantages
Automotive AEC-Q100 Qualified
Supports a wide voltage range：2.5V~24V
High chopping frequency 800KHZ
Over-voltage protection at all pins
The magnetic field has good symmetry
Wide operating temperature range：-40℃~150℃
Reverse battery protection: -28V
Ordering Information
| Ordering Information | Mark | Option | BOP(Gs) | BRP(GS) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|---|
| SC2442SE-TR-Q | 2442 | S | +20 | -20 | -40~150 | SOT23 | Reel | 3000/reel |
| SC2442SO-N-TR-Q | 2442 | N | -20 | +20 | -40~150 | SOT23-3L | Reel | 3000/reel |
| SC2442SO-TR-Q | 2442 | S | +20 | -20 | -40~150 | SOT23-3L | Reel | 3000/reel |
| SC2442UA-BK-Q | 2442 | S | +20 | -20 | -40~150 | TO-92S | Bulk | 1000/bag |
| SC2443SO-TR-Q | 2443 | S | +30 | -30 | -40~150 | SOT23-3L | Reel | 3000/reel |
| SC2443UA-BK-Q | 2443 | S | +30 | -30 | -40~150 | TO-92S | Bulk | 1000/bag |
| SC2448SO-TR-Q | 2448 | S | +80 | -80 | -40~150 | SOT23-3L | Reel | 3000/reel |
| SC2448SO-TR-Q | 2448 | N | -80 | +80 | -40~150 | TO-92S | Bulk | 1000/bag |

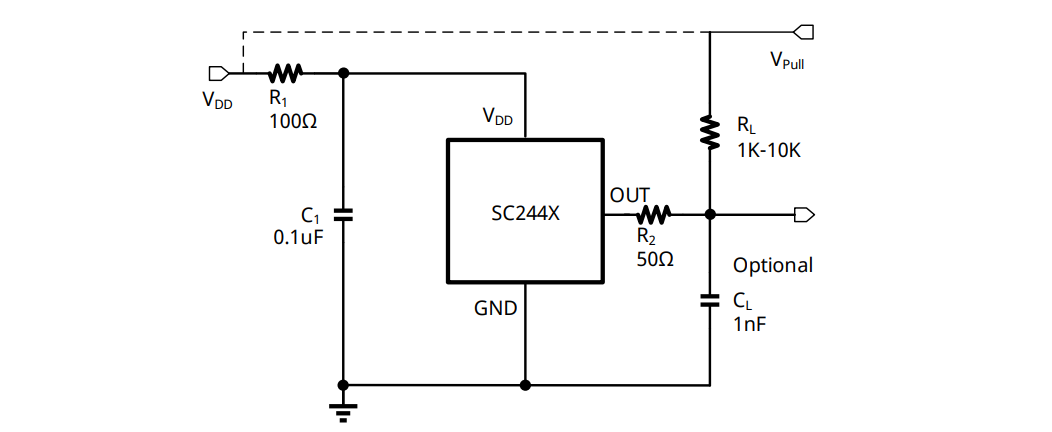

Product Application
Seat Belt Retractor
Seat Motor
Three-phase Motor Commutation
Single-phase Motor Commutation
Motor Positioning
Motor Speed Measurement
Proximity Switch
Tachometer
Air Suspension Compressor Controller
Electronic Expansion Valve
Electric Oil Pump
Sunroof Motor Controller
Anti-pinch Window Motor
Charging Port Actuator
Automatic Hidden Door Handle Stroke Detection
Electronic Steering Column Lock
Documents and Resources
Semiment Product Selection Guide
SC2443 Datasheet
Application Note for SC2443
The SC244X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features. An onboard regulator permits with supply voltages of 2.5V to 24V which makes the device suitable for a wide range of industrial and automotive applications.
