High Performance Digital-Latch Hall Effect Sensor
Ultra-High Voltage Withstand, Reverse Polarity Protection, High ESD、Compliant with ASIL-B
The SC294X series is manufactured using advanced 60V BCD technology, developed in accordance with ISO26262-10 and ISO26262-9. As a Safety Element out of Context (SEooC), it reaches the ASIL-B level. It is a chopper-stabilized Hall effect sensor that provides a magnetic sensing solution with excellent sensitivity stability and integrated protection functions.
SC2948 Datasheet
Characteristics and advantages
AEC-Q100 qualified
Developed according to ISO26262-10 and ISO26262-9 as SEooC with ASIL-B level
Supports a wide operation voltage range：2.8-40V
Reverse battery protection：-28V
Wide operating temperature range：-40-150°C
Supply voltage transient up to 60V with 200Ω RS resistor
Current limited open drain output: 40mA
High EMC/ESD immunity
Ordering Information
| Ordering Information | Mark | Option | Grade | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC2943SO-TR-Q | 2943 | Q | -55 to 150 | SOT23-3L | Reel | 3000 pieces/reel | |
| SC2943SO-N-TR-Q | 2943 | N | Q | -55 to 150 | SOT23-3L | Reel | 3000 pieces/reel |
| SC2943UA-BK-Q | 2943 | Q | -55 to 150 | TO92S | Reel | 1000 pieces/bag | |
| SC2948SO-TR-Q | 2943 | Q | -55 to 150 | SOT23-3L | Reel | 3000 pieces/reel | |
| SC2948UA-BK-Q | 2943 | Q | -55 to 150 | TO92S | Bulk | 1000 pieces/bag | |
| SC2948UA-N-BK-Q | 2943 | N | Q | -55 to 150 | TO92S | Bulk | 1000 pieces/bag |

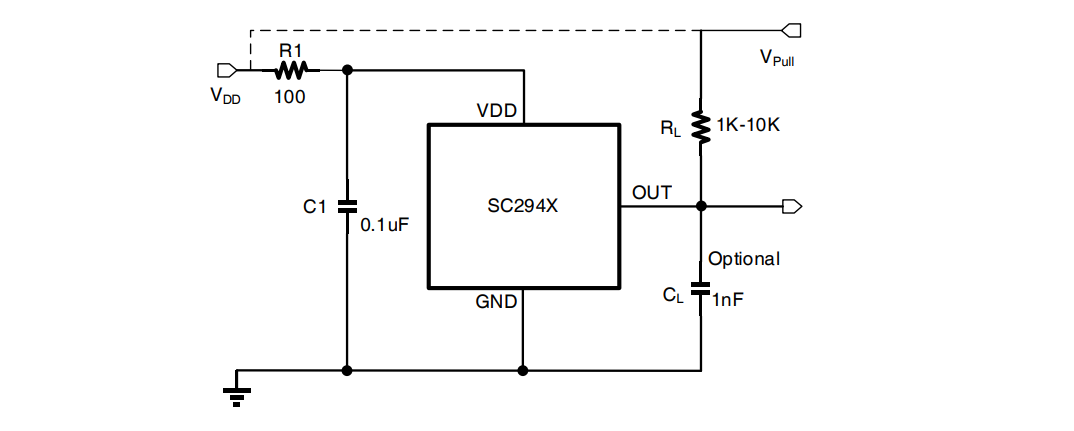

Product Application
Urea Pump
Sliding Door Motor
Documents and Resources
Semiment Product Selection Guide
SC2948 Datasheet
Application Note for SC2948
The SC294X series is manufactured using advanced 60V BCD technology, developed in accordance with ISO26262-10 and ISO26262-9. As a Safety Element out of Context (SEooC), it reaches the ASIL-B level. It is a chopper-stabilized Hall effect sensor that provides a magnetic sensing solution with excellent sensitivity stability and integrated protection functions.
