Characteristics and advantages
3.3 to 10.5V wide supply voltage range
High-Reliability，Withstand Voltage > 30V
-40℃ to 150℃ wide ambient temperature range
High Linearity
Resistant to mechanical stress
SC4002
Analog Output Linear Hall Sensor
High-Reliability、wide supply voltage range、High-speed Linear Hall
The SC400X are high performance small versatile linear Hall-Effect devices which are operated by the magnetic field from a permanent magnet or an electromagnet. The radiometric output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic. The quiescent output voltage of the SC4002 and SC4003 is 50% of the supply voltage, The sensitivity of 5V power supply is 3.125mV/Gs, 5.0mV/Gs, and 2.5 mV/Gs, respectively.

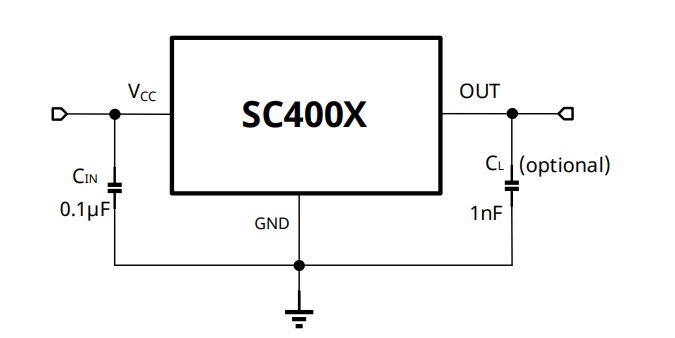

data table
SC4002 Datasheet
SC4002 Datasheet
Ordering Information
| Ordering Information | Sens(mV/Gs) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SC4002UA-BK | 3.125 | -40-150 | TO92S-S1 | BK | 1000/bag |
| SC4002BU-TR | 3.125 | -40-150 | SOT89-3 | TR | 3000/reel |
| SC4002SO-N-TR | 3.125 | -40-150 | SOT23-3L | TR | 3000/reel |
| SC4003UA-BK | 5 | -40-150 | TO92S-S1 | BK | 1000/bag |
| SC4005UA-BK | 2.5 | -40-150 | TO92S-S1 | BK | 1000/bag |
| SC4005CUA-BK-Q | 2.5 | -40-150 | TO92S-S1 | BK | 1000/bag |
Product Application
Magnetic Guidance
Documents and Resources
Semiment Product Selection Guide
Selection Guide
English version
2025-10-22
SC4002 Datasheet
Datesheet
English version
2025-10-22
Application Note for SC4002
Application Note
video
The SC400X are high performance small versatile linear Hall-Effect devices which are operated by the magnetic field from a permanent magnet or an electromagnet. The radiometric output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic. The quiescent output voltage of the SC4002 and SC4003 is 50% of the supply voltage, The sensitivity of 5V power supply is 3.125mV/Gs, 5.0mV/Gs, and 2.5 mV/Gs, respectively.
