Dual Channel Angular Hall Effect Sensor with Sine-Cosine Output
Integrated Hall Effect Position Sensor、Ultra-Low Power Mode、Suitable for battery-powered applications

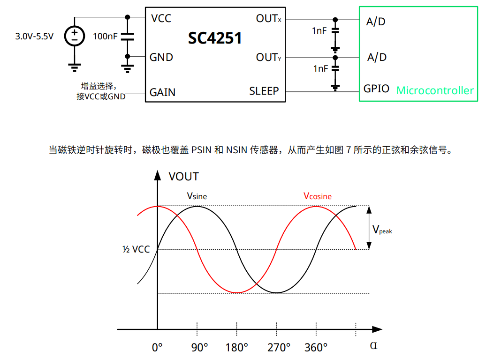

SC4251 is an integrated Hall effect position sensor designed to scan permanent magnets. When the magnet rotates, the IC outputs sine and cosine analog signals, enabling calculation of the permanent magnet’s current position. Equipped with a gain configuration pin, the SC4251 allows adjustment of output amplitude via external voltage levels (high/low). The chip supports a Sleep Mode with μA-level power consumption, making it suitable for battery-powered applications.
SC4251 Datasheet
Characteristics and advantages
Sine and cosine output signals
Current consumption in sleep mode: <25μA
Magnetic rotation speed up to 80,000 RPM
Supply voltage: 3V to 5.5V
Fast wake-up from sleep: <10μs
Wide operating temperature range: -40℃ to 125℃
Package Type
– DFN3*3
– DFN1616
Ordering Information
| Ordering Information | Sens(mV/Gs) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SC4251D3-TR | 1 | -40-125 | DFN3*3 | TR | 5000/reel |
| SC4251DN-TR | 1 | -40-125 | DFN1616 | TR | 4000/reel |
Product Application
Motor Positioning
Handheld Gimbal
Drone Gimbal
Camera Positioning
Electric Toothbrush
Documents and Resources
Semiment Product Selection Guide
SC4251 Datasheet
Application Note for SC4251
SC4251 is an integrated Hall effect position sensor designed to scan permanent magnets. When the magnet rotates, the IC outputs sine and cosine analog signals, enabling calculation of the permanent magnet’s current position. Equipped with a gain configuration pin, the SC4251 allows adjustment of output amplitude via external voltage levels (high/low). The chip supports a Sleep Mode with μA-level power consumption, making it suitable for battery-powered applications.
