High Sensitivity Speed Sensor IC with Dual Quadrature Outputs
differential Hall-effect、Stable Temperature Characteristics and Symmetry
The SC9633 is a differential Hall-effect sensor integrated circuit with two independent channels providing an orthogonal digital output. Its high sensitivity, stable temperature characteristics and symmetry give it a stable duty cycle per output at full temperature.
SC9633VB Datasheet
Characteristics and advantages
1.2mm Hall gap
Two independent digital quadrature A/B outputs
South and North pole pre-induction possible
Accurate true zero-crossing switch-point
Large air gap
Startup Voltage：3.8V
Power Consumption：6.8mA
-40℃ to 150℃ operating temperature range
All pins feature overvoltage protection
The power supply pin features reverse polarity protection
Ordering Information
| Ordering Information | Marking | Hall plate spacing(mm) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC9632VB-BK | 9632 | 2.1 | -40 ~ 150 | TO-94 | Bulk | 500/bag |
| SC9633VB-BK | 9633 | 1.2 | -40 ~ 150 | TO-94 | Bulk | 500/bag |
| SC9634VB-BK | 9634 | 1.8 | -40 ~ 150 | TO-94 | Bulk | 500/bag |

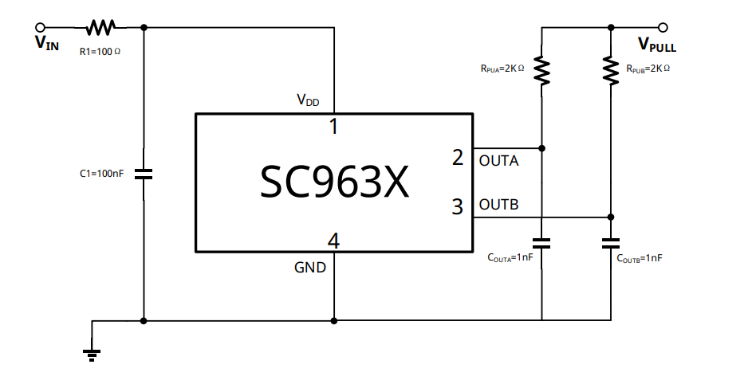

Product Application
Documents and Resources
Semiment Product Selection Guide
SC9633VB Datasheet
Application Note for SC9633VB
The SC9633 is a differential Hall-effect sensor integrated circuit with two independent channels providing an orthogonal digital output. Its high sensitivity, stable temperature characteristics and symmetry give it a stable duty cycle per output at full temperature.
