Programmable、High accuracy Crankshaft Position Sensor

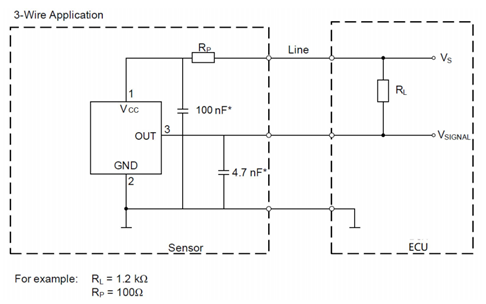

TPOS、Phase-Programmable、3-wire Voltage-type Output
The SC9669 is an active Hall sensor, it is suitable for both magnetic ring inspection and gear inspection ideally suited for crankshaft and transmission and other applications.Its main path is as follows: the magnetic field input signal is processed by the Hall plate, then amplified and filtered, handled by the digital unit, and finally output through the output interface.
SC9669T3 Datasheet
Characteristics and advantages
Supports speed and direction signal output
phase accuracy：0.2°
16-Step Phase-Programmable
Jitter Suppression
Dynamic self-calibration principle
PCB-LESS
AEC-Q100 qualified
Suitable for special operating conditions of engines in hybrid and extended-range vehicles
Ordering Information
| Ordering Information | Marking | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SC9669T3-TR-Q | 9669 | -40 ~ 150 | TS-3 | Tape & reel | 1500 /reel |
Product Application
Crankshaft Position Sensor
Documents and Resources
Semiment Product Selection Guide
SC9669T3 Datasheet
Application Note for SC9669T3
The SC9669 is an active Hall sensor, it is suitable for both magnetic ring inspection and gear inspection ideally suited for crankshaft and transmission and other applications.Its main path is as follows: the magnetic field input signal is processed by the Hall plate, then amplified and filtered, handled by the digital unit, and finally output through the output interface.
