Voltage-type Square Output High Accuracy Speed Sensor IC
High Sensitivity、Differential Hall、Zero Crossing Output Toggle
Differential Hall effect sensor IC SC962X has two hall induction points inside, and the magnetic field induced by it will perform differential calculation, so that the chip has high sensitivity and large detection air gap characteristics. Magnetic ring or back magnetic detection gear can be detected. It has a wide operating voltage range and operating temperature range, as well as a high EMC robustness, and passes the AECQ100 Grade0 assessment, so it is very suitable for speed detection in automobiles, such as crankshaft sensor, transmission. The SC9621 is an output flip when the differential magnetic field is zero, and has hysteresis judgment to prevent false triggering, thus guaranteeing its excellent repeatability and reliable accuracy. If the back magnetic detects the gear, the flip point is in the center of the tooth.
SC9621VB Datasheet
Characteristics and advantages
Support zero crossing or threshold crossing
South and North pole pre-induction possible
Large air gap
Single chip solution
3.8V~26V power supply voltage range
-40℃ to 150℃ operating temperature range
Protection against overvoltage
Protection against reversed polarity
AEC-Q100 Grade0 qualified
Package：TO-94
Ordering Information
| Ordering Information | Marking | Trigger mode | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC9621VB-BK | 9621 | Zero | - | -40 ~ 150 | TO-94 | Bulk | 500/bag |
| SC9621VB-TR-Q | 9621 | Zero | Q | -40 ~ 150 | TO-94 | Tape & reel | 2000/reel |
| SC9625VB-BK | 9625 | Threshold | - | -40 ~ 150 | TO-94 | Bulk | 500/bag |
| SC9625VB-TR-Q | 9625 | Threshold | Q | -40 ~ 150 | TO-94 | Tape & reel | 2000/reel |

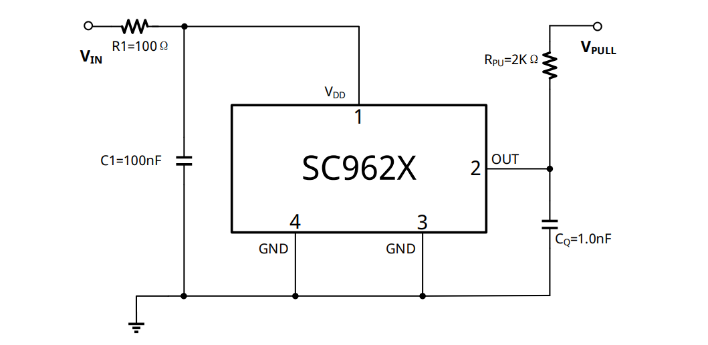

Product Application
Crankshaft Position Sensor
Documents and Resources
Semiment Product Selection Guide
SC9621VB Datasheet
Application Note for SC9621VB
Differential Hall effect sensor IC SC962X has two hall induction points inside, and the magnetic field induced by it will perform differential calculation, so that the chip has high sensitivity and large detection air gap characteristics. Magnetic ring or back magnetic detection gear can be detected. It has a wide operating voltage range and operating temperature range, as well as a high EMC robustness, and passes the AECQ100 Grade0 assessment, so it is very suitable for speed detection in automobiles, such as crankshaft sensor, transmission. The SC9621 is an output flip when the differential magnetic field is zero, and has hysteresis judgment to prevent false triggering, thus guaranteeing its excellent repeatability and reliable accuracy. If the back magnetic detects the gear, the flip point is in the center of the tooth.
