High-Precision, High-Bandwidth, Programmable Linear Hall Sensor
Product Description
SC4643

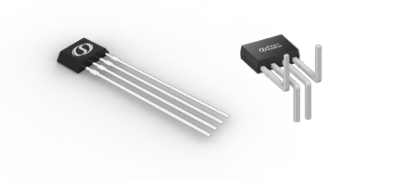

Package：TO92U & TO94
The SC4643 is a programmable linear Hall sensor IC. It integrates an internal magnetic field sensing element, a three-stage variable gain low-noise amplifier, an output stage, a temperature sensor, quiescent output voltage compensation, sensitivity compensation, and an EEPROM control module.
Features & Benefits
AEC-Q100 qualified
Programmable High-Speed linear hall sensor IC
Response time as low as 3.7 µs
Bandwidth 120 kHz
Low Noise
Supply Under-Voltage lockout (UVLO), Output Short-Circuit protection
Operating voltage range 4.5-5.5V
Operating temperature range -40-150 °C
TO92U & TO94 package, Lead-Free and Halogen-Free

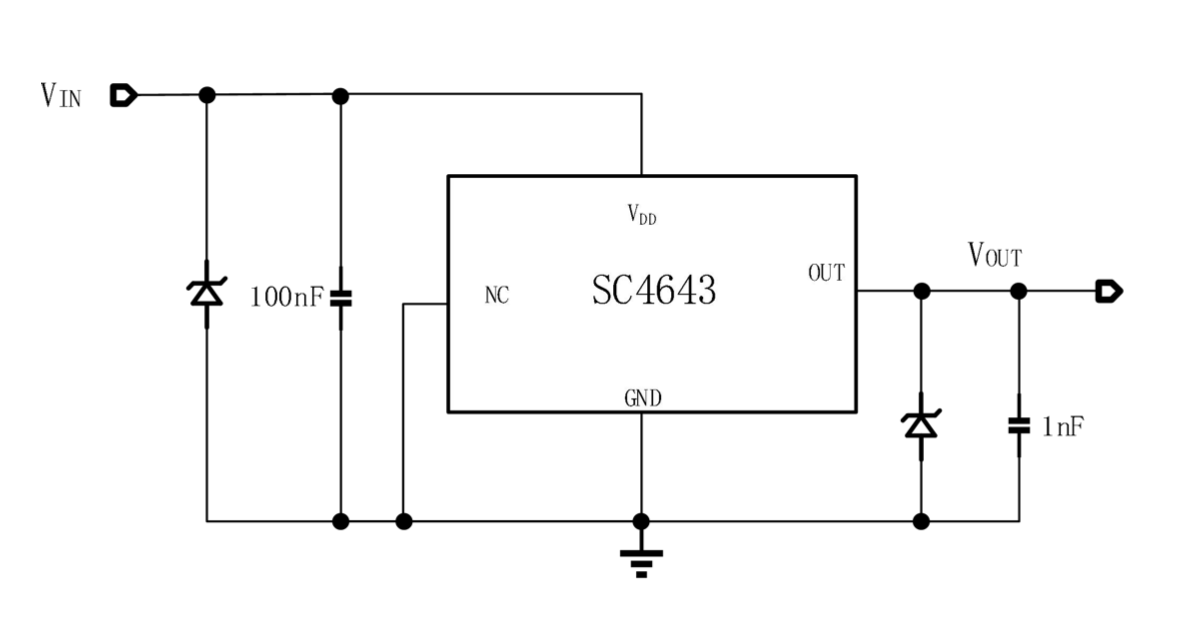

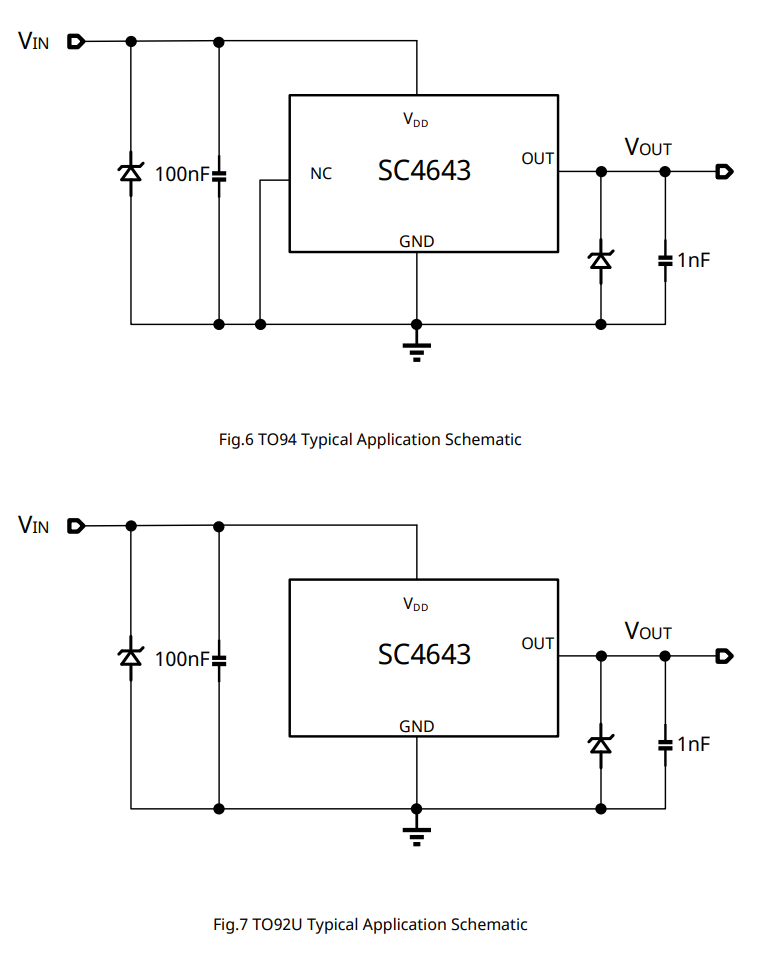

Application Diagrams
