Hall Effect Angle Position Sensors
Product Description
SC69401
Package：SOP8 / eTSSOP-16L
SC69401 is suitable for non-contact detection of the mounting position on the axle and is suitable for applications such as automotive gas pedals, electronic throttles, EGR valves, gear shifter, body heights and steering wheel angle.
Features & Benefits
Disconnect diagnostics
AEC-Q100、ISO26262 ASIL Ready
Under-voltage detection
Rich on-chip diagnostic capabilities
Selectable output modes
Programmable angular measuring range
32-bit programmable user ID
Operating temperature range -40°C to 160°C
Simple magnetic circuit design
Programmable linear transmission characteristics
Over-current/voltage protection
High-precision rotary absolute angle
Differential Hall sensing to resist stray

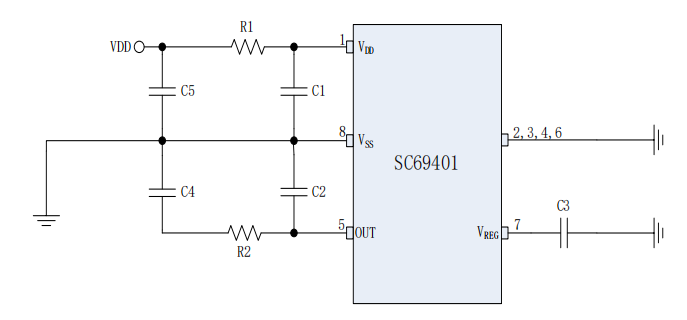

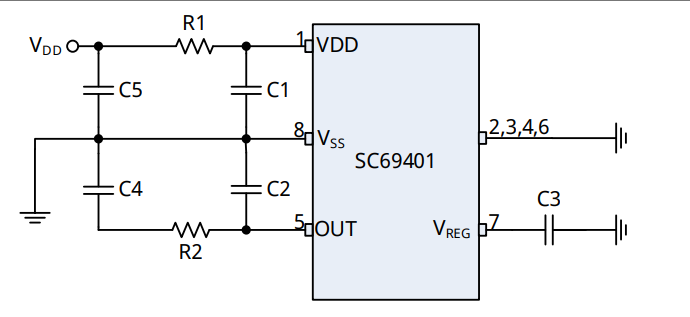

Application Diagrams
Documents & Resources
