Dual Channel Real-time 12-Bit Inductive Rotary Encoder
Product Description
SC60340
Package：SSOP8
SC60340 is a non-magnetic, non-contact coil inductive position sensor IC. It can be used for high-speed absolute position detection in automotive, industrial, medical and consumer applications.
Features & Benefits
Non-contact coil induction sensing
Customizable PCB inductor coil to meet
Dual-channel high-speed real-time
Support through shaft or end closure
Operating temperature from -40℃ to 125℃
Programmable parameter
Maximum Support Rev. up to 10k rpm
U, V, W Differential output
Angular linearity error less than ±0.1°
SPI Absolute Angle serial output
A, B, Z Orthogonal incremental output
Operating temperature from -40℃ to 125℃

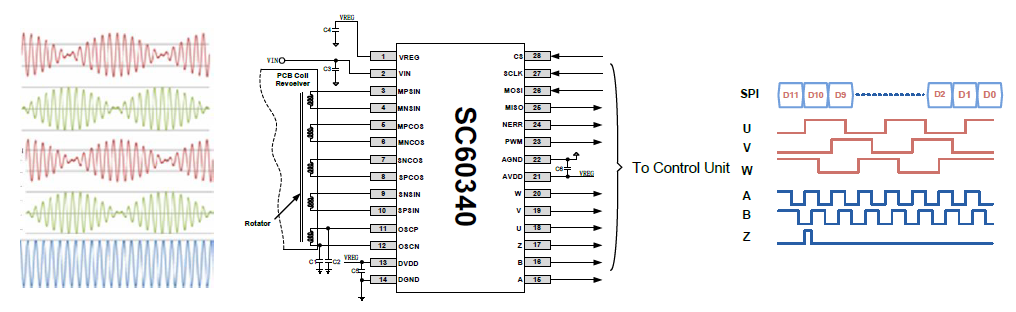

Application Diagrams
