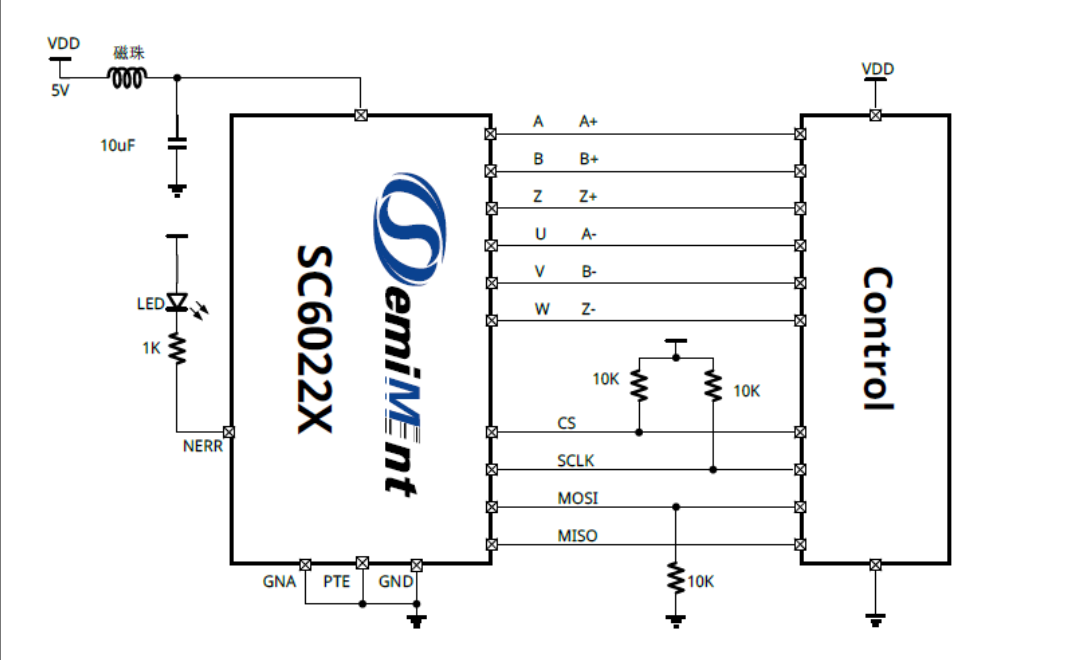

SC6022X is a contactless high-speed, high-precision magnetic encoder chip. Hall induction point matrix is built into the center of the chip, which generates sine and cosine position signals by sensing a pair of pole magnets above. The analog to digital conversion circuit inside the chip samples the amplified sine and cosine signals, and the DSP circuit performs Angle calculation, and finally outputs various position signals.SC6022X has a resolution of 12 bits, and each circle can generate 4096 i
