2-Wire High Performance Programmable Hall effect sensor
Product Description
SC25898

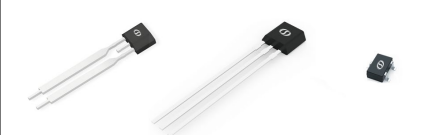

Package: TO92S, SOT23-3L
The SC2589X family, designed and produced on high voltage BCD process, is a chopper-stabilized 2-wire Hall Effect Sensor with current interface that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
Features & Benefits
Current output latching Hall - effect sensor.
AEC-Q100 qualified
ISO26262 ASIL-B SEooC
Up to 1MHz high chopping frequency
Supports a wide operation voltage range: - 4 to 24V
Wide operating temperature range: - -40℃ to 150℃
Reverse battery protection: -28V
Thermal shutdown protection
High EMC/ESD immunity
Multiple packaging forms are available

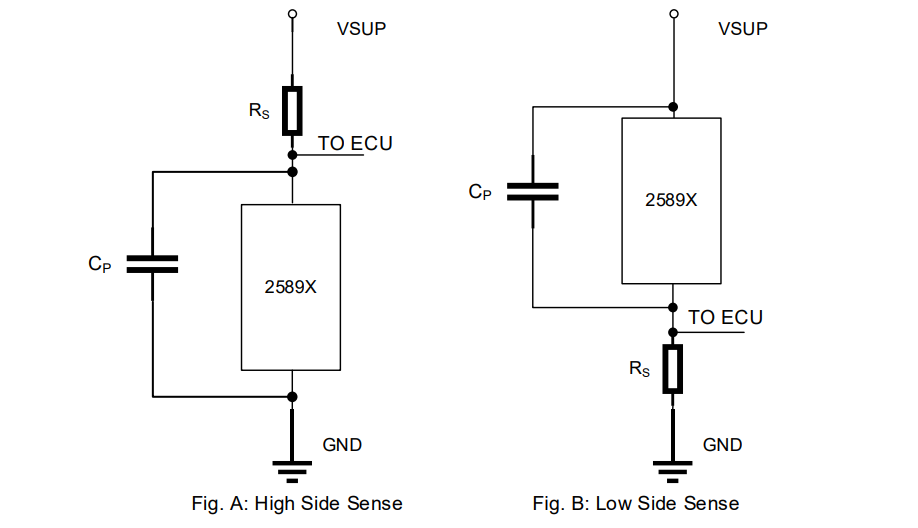

Application Diagrams
