High Sensitivity Digital-Unipolar Hall-effect Sensor
Product Description
SC245X
Package：SOT23
The SC245X produced with BiCMOS technology, is a chopper-stabilized 3-wire Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
SC2451（BOP:100Gs,BRP:85Gs)
SC2452（BOP:180Gs,BRP:50Gs)
SC2455（BOP:255Gs,BRP:50Gs)
Features & Benefits
3-wire Voltage Mode Interface
AEC-Q100 qualified
ISO26262 ASIL-B SEooC
Programmable Hall Effect Sensor
Less Than 20uA Average Current In μ-Power Mode
Wide voltage range 3 to 48V
Reverse battery protection: -28V
Open-Drain output
-40°C to +150°C operating temperature range
Thermal shutdown protection
High EMC/ESD immunity
SOT23-3L and TO-92S package options
Small package

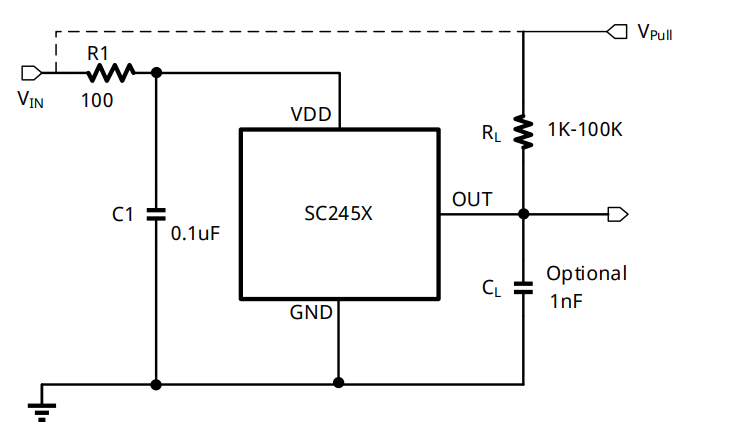

Application Diagrams
