SC2526VB-AB

Dual Channel Hall-effect Switch with Quadrature A/B and Direction Outputs

Product Description

SC2526VB-AB

Package:SIP4 / SOIC8

The SC2526 is a dual-channel Hall-effect sensor IC ideal for use in speed and direction sensing applications incorporating encode ring-magnet targets. It provides various output signals that indicate speed and direction of target rotations. The Hall elements are both photos lithographically aligned to better than 1um.

Features & Benefits

Solid-state reliability

High sensitivity in BOP and BRP

Voltage range 3.0V to 24V

Superior temperature stability and industry-leading

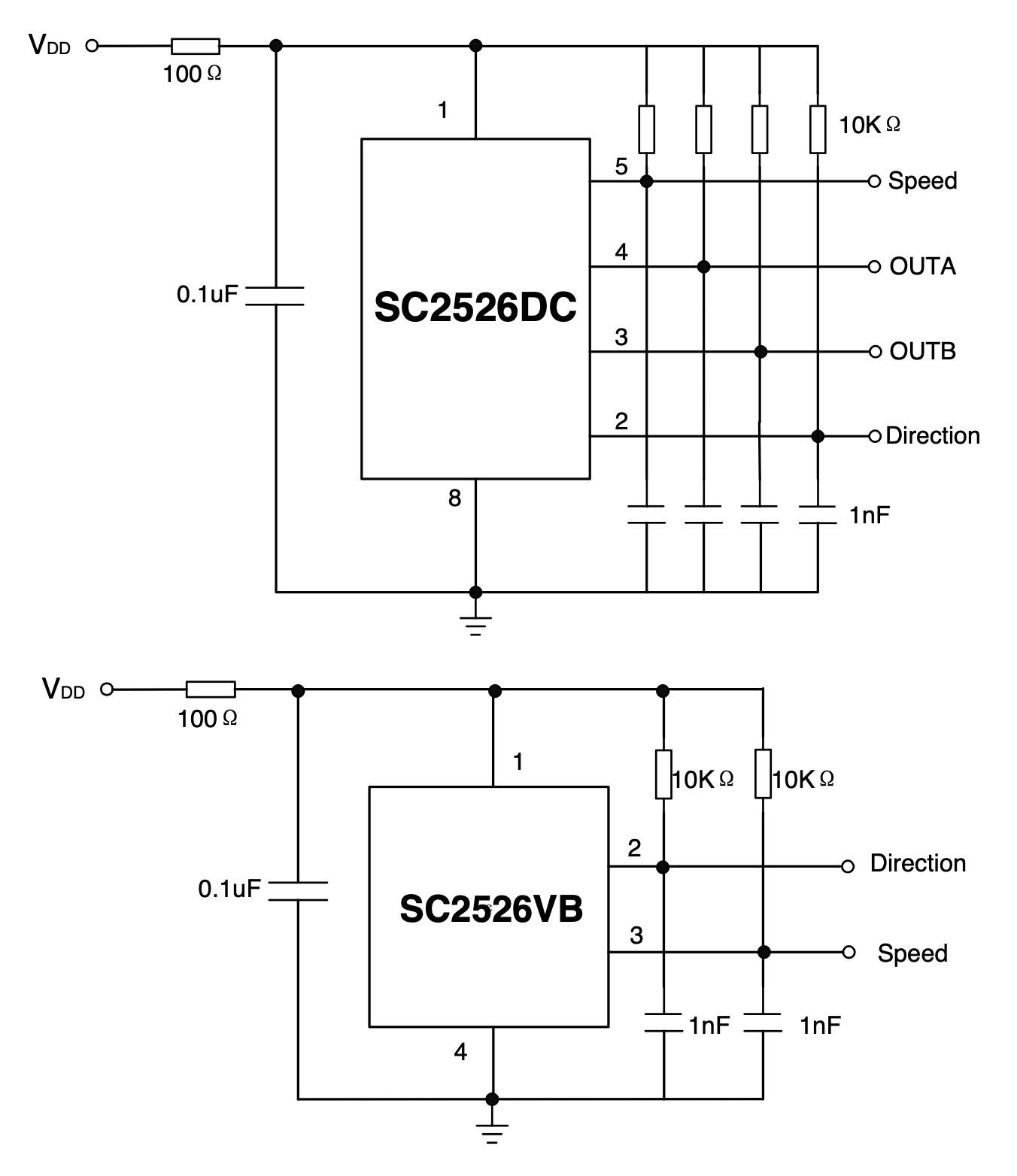

Application Diagrams

SC2526

Documents & Resources

Datasheet(s)

Application Note(s)

Selection Guide(s)
