High Accuracy, Programmable Linear Output Hall Effect Sensor Ics
Product Description
SC4689
Package：SIP3 / SOP8
SC468X is a BiCMOS programmable linear Hall Effect sensor IC. The linear output voltage is proportional to the magnetic flux density. The output voltage is proportional to the supply voltage. All the parameters of the SC468X transfer characteristic are fully programmable.
Features & Benefits
AEC-Q100
Total error＜2% over temperature range
Linear analog output voltage
Programmable output quiescent voltage
EMC and ESD optimized design
Operates from 4.5V to 5.5V supply voltage
Operate with static magnetic fields
Programmable temperature compensation
Programmable magnetic sensitivity
Open-circuit, over and under-voltage detection
Dynamic Magnetic fields up to 2kHz
Operates from -40℃ to150℃ temperature range

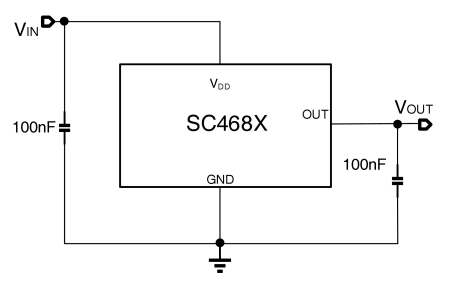

Application Diagrams
