High Sensitive Digital-Latch Hall Effect Sensor
Product Description

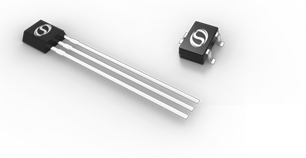

SC244X
The SC244X family, produced with BiC MOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
Features & Benefits
Solid-state reliability
Reverse battery protection
Chopper-stabilized Hall Effect
High chopping frequency 800KHZ
Factory-programmed at end-of-line for magnetic optimum
AEC-Q100 qualified production
Wide voltage range 2.5V to 24V
Over-voltage protection at all PINS
Operating temperature range -40℃ to 150℃

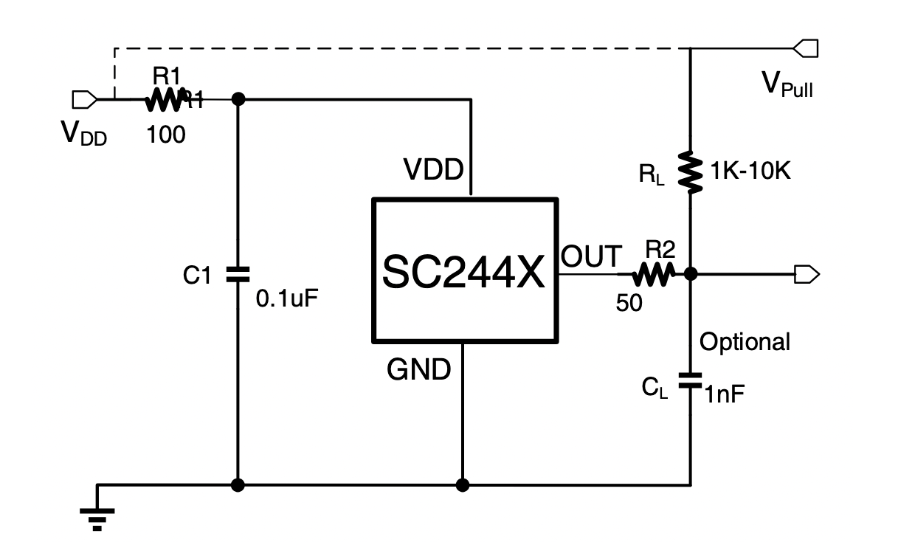

Application Diagrams
