Product Description
VE2266

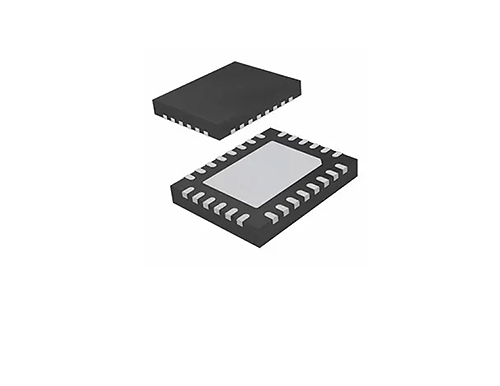

Package：QFN28
VE2266
20V/Dual Channel 6A Buck Regulator
Features & Benefits
Wide VIN Range:
3.3 V to 20V
Output Current per Channel:
6A
High Efficiency:
Up to 95%
Adjustable Frequency:
500kHz to 4MHz
Overvoltage Input
Load Transient Response
Short-Circuit Protected
Overtemperature Protection
Power Good Status Outputs
User Selectable Burst Mode Operation
External Frequency Synchronization
0.6V Reference Allows Low Output Voltages
Current Mode Operation for Excellent Line
Output Voltage Tracking
Soft-Start Capability
0.6V to 5V—VE2226
1.8V to 12V—VE2226A

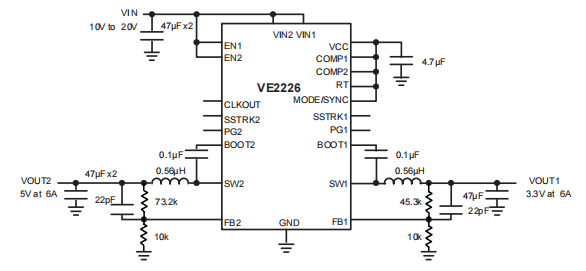

Application Diagrams
