High Accuracy Differential Speed Sensor IC with Zero-Crossing Output Signal
Product Description
SC9621VB

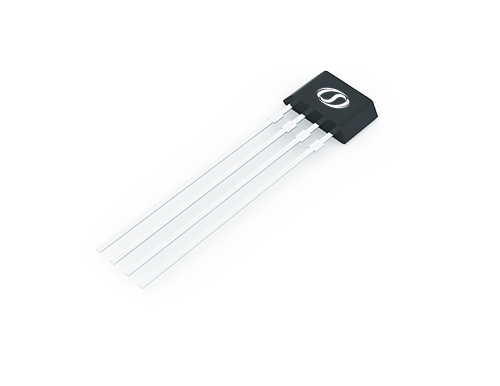

Package：SIP4
SC9621 provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order to achieve a stable duty cycle. It suitable for rotational speed detection and timing applications of ferromagnetic toothed wheels.
Features & Benefits
Large air gap
Supply operating range 3.8V to 26.5V
Temperature range -40℃ to 150℃
Reverse-current protection in VDD PIN
Accurate true zero-crossing switch-point
Protection against over-voltage in all PIN
South and North pole pre-induction possible

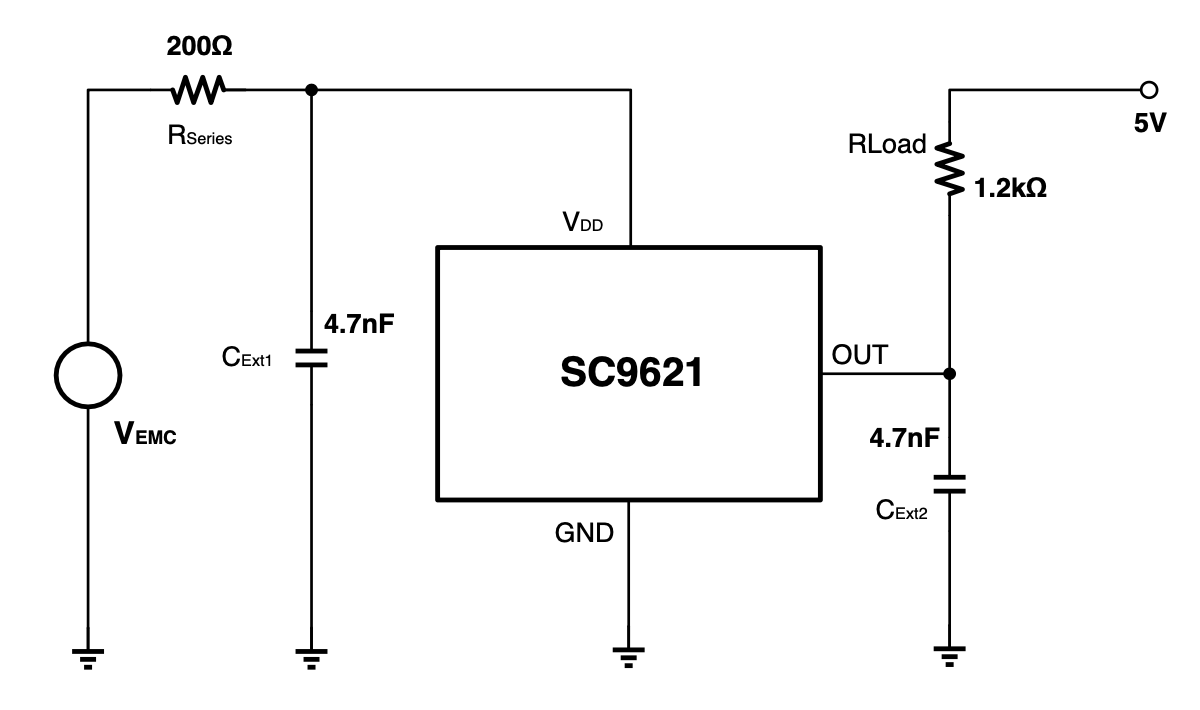

Application Diagrams
