High Sensitive Digital-Latch Hall Effect Sensor
Product Description
SC294X
The SC294X family, produced with advanced 60V BCD technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability and integrated protection features.
Features & Benefits
AEC-Q100 qualified
Supports a wide operation voltage range: 2.8 to 40V
Supply voltage transient up to 60V with 200Ω RS resistor.
Wide operating temperature range: -55℃-150℃
Reverse battery protection: -28V
Current limited open drain output: 40mA

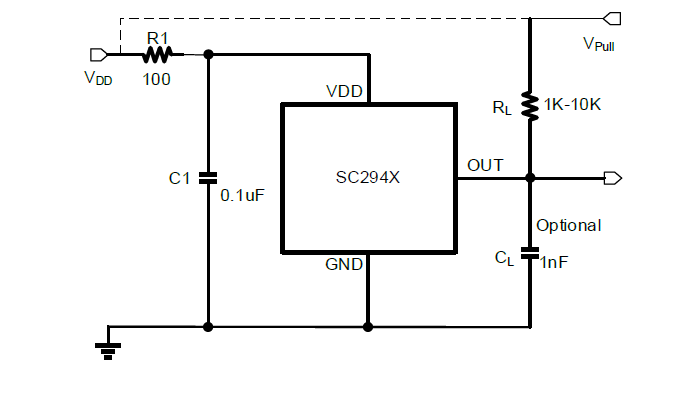

Application Diagrams
