Product Description
SC206X
Package：SIP3 / SOT23
The SC206X family (2062/2063/2064) is an ultra-low-power omni-polar switch hall effect sensor, designed for the most compact and battery sensitive systems.
SC206X
Ultra-Low-Power Ominipolar Switch Hall Effect Sensor
Features & Benefits
Operating range 1.65V to 5.5V
Push-pull and open-drain output options
Operating temperature range 0°C to 85°C
Industry power consumption 1.2µA with 3.0V

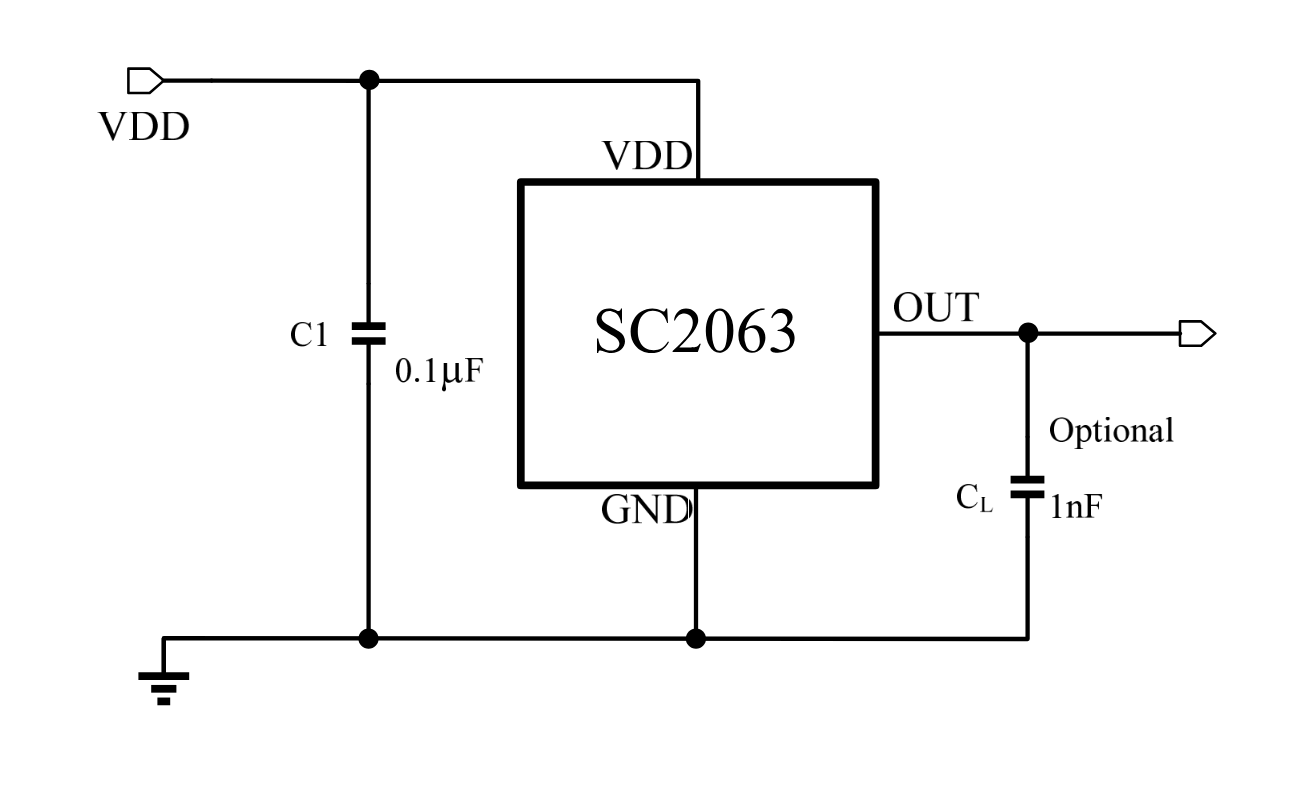

Application Diagrams
