High Precision, Low Noise, Current Sensor IC with OCD
Product Description
SC4663
Package：SIP3-VB / SIP4-VB
The SC4663 is a monolithic programmable Hall sensor IC featuring the planar Hall technology, which is sensitive to the flux density applied orthogonally to the IC surface. The sensor provides an output signal proportional to the applied magnetic flux density and is preferably suited for current measurement.
Features & Benefits
End-of-line programmable sensor
Wide bandwidth up to 400 kHz
Very short response time (2μs)
Measurement range up to 4500Gs
Low thermal drift
Offset drift (<5mV)
Sensitivity drift (<1%)
Supply voltage from 4.5 to 5.5 V
AEC-Q100-Grade 0 Automotive Qualification
Internal over-current detection
24 Bit customer ID
Diagnostic capability
OVD
Broken wire
SIP4-VB and SIP3-VB package

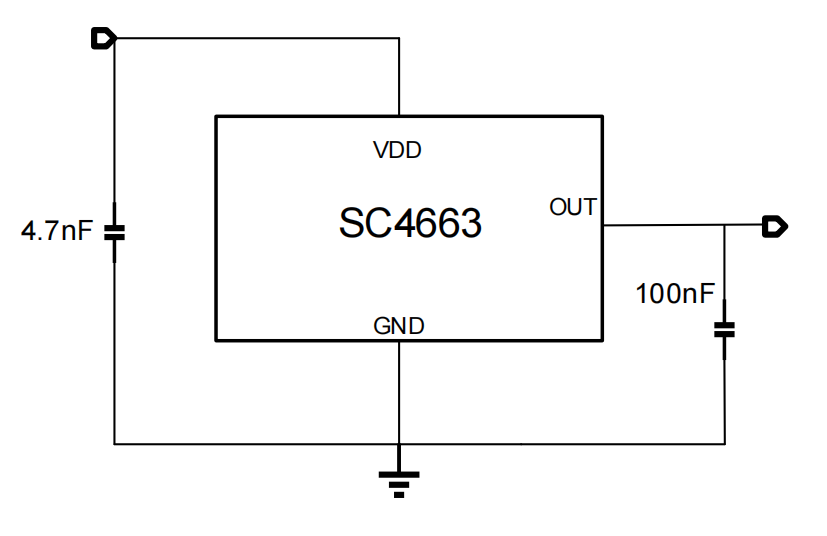

Application Diagrams
