Product Description
SC4665
Package：SIP4-VB
SC4665 is a monolithic programmable Hall sensor IC featuring the planar Hall technology,which is sensitive to the flux density applied orthogonality to the IC surface.
SC4665
High Precision, Low Noise, Current Sensor IC with REF or OCD
Features & Benefits
400 KHZ bandwidth
1.2us typical response time
24 Bit customer ID
Selectable analog ratiometric output
Diagnostic capability
Various adjustable error detection modes
AEC-Q100 Grade 0
Sensor range from 0.4mV/GS to 4mV/GS
Offset voltage＜20mV in full temperature
range
Sensitivity error ＜1.5% in full temperature
range
Non-ratiometric output with fixed Vref
bidirectional operation
2 versions respectively support 3.3V and
5V applications

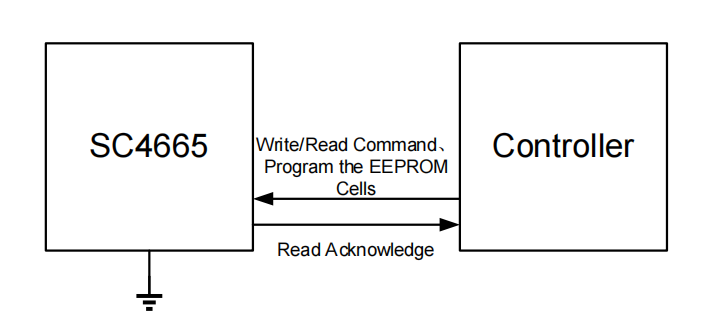

Application Diagrams
