Product Description
SC60228
Package：SOP8
SC60228 is a 360° angle sensor IC with a built-in Hall element, and easily achieve a noncontact rotation angle sensor in combination with diametrically magnetized two pole magnets.
SC60228
Dual Channel Real-time 12-Bit Inductive Rotary Encoder
Features & Benefits
ESD > 4kV (HBM)
0.18um CMOS technology
Angle linearity error＜±0.35°
Wide temperature range -40℃ to 125℃
Maximum tracking speed 20,000rpm
Contactless 12 bit resolution angular encoder
360° angle measurement with revolution
counter and angle speed measurement
Output pins can be configured as push-pull
or open-drain

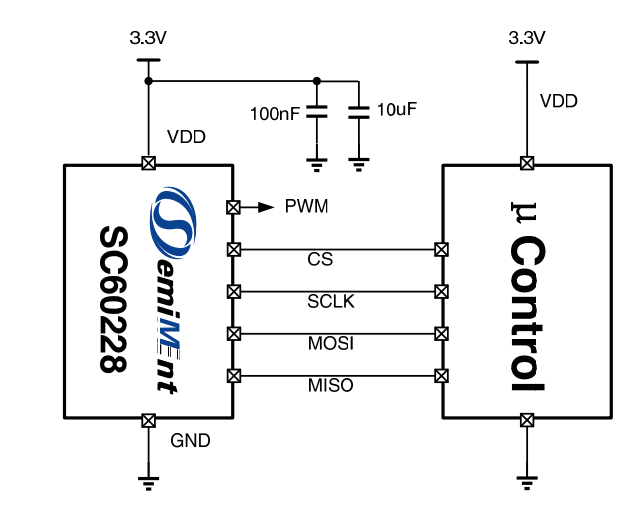

Application Diagrams
Documents & Resources
