100V Three-phase Half-bridge Gate Driver
Product Description
ZH639D0

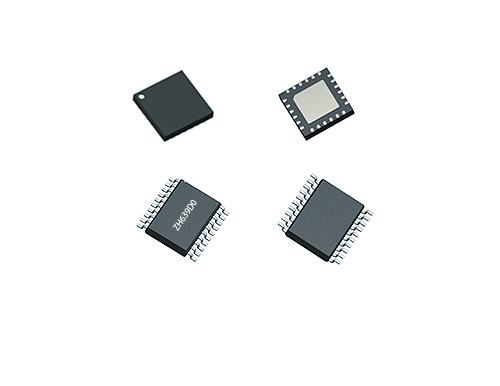

Package：TSSOP20 / QFN24
ZH639D0 is a high-voltage, high-speed halfbridge gate driver for power MOSFETs and IGBTs. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in a high-side configuration, with an operating voltage of 120V.
Features & Benefits
Integrated bootstrap diode
Maximum operating frequency 500kHz
Adaptive dead-time control circuit
Built-in lockout to prevent shoot-through
High-side undervoltage protection
Output equivalent current capability of 2.5A
Logic input levels compatible with 3.3V/5V
Driver for three-phase N-channel MOS or IGBT
High-side floating bootstrap power supply
No resistors or diodes required at the gate

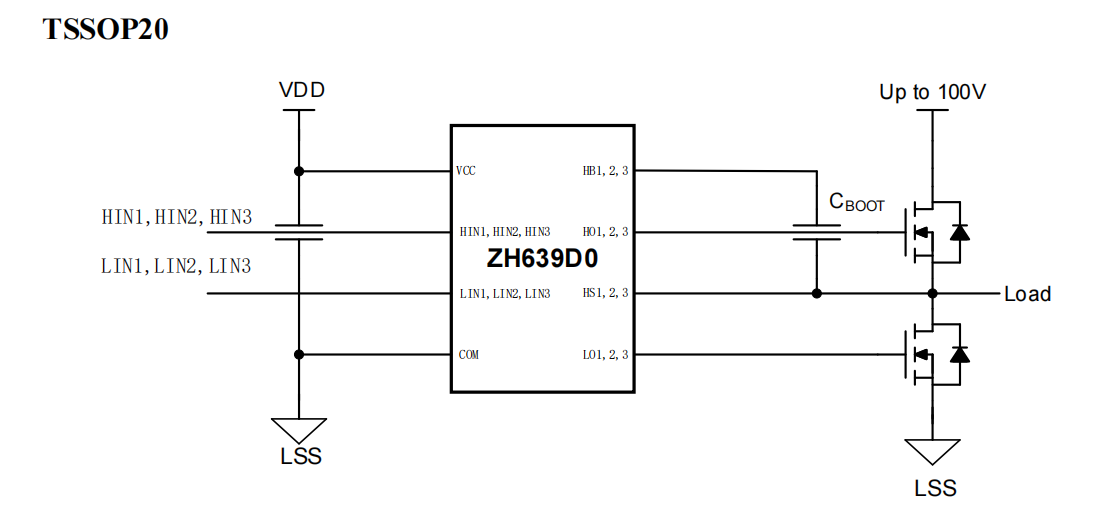

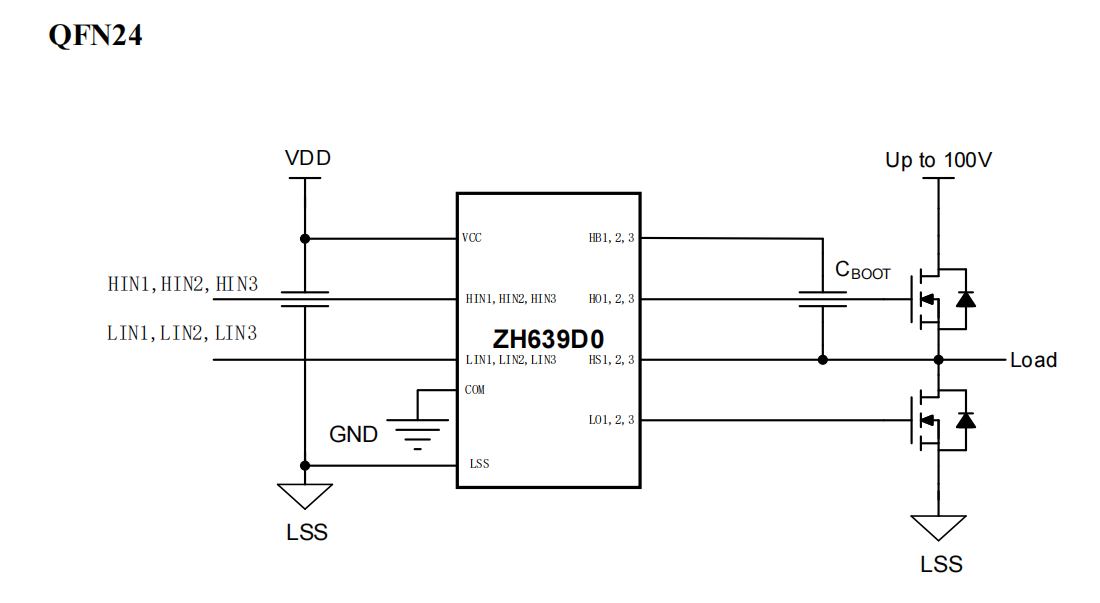

Application Diagrams
