4V-60V Input Current Mode Synchronous Buck Controller
Product Description
VE8600Q
Package：TSSOP20-EP / QFN20
The VE8600 is a high-voltage, synchronous, step down controller. The VE8600 uses current mode control with cycle-by-cycle peak valley current limiting or hiccup mode OCP.The VE8600 has DEM that optimizes light-load efficiency.
Features & Benefits
Operating Input Range:：
Operating Output Range：
Low Dropout Operation:
Programmable Frequency Range：
External Sync Clock Range:
0.8V Voltage Reference with ±1.5% Accuracy
Programmable Soft Start
Dual N-Channel MOSFET Driver
Shunt and DCR Sensing
Power Good Output Voltage Monitor
Peak Valley Current Limit
Programmable CCM and DEM Mode
Output Over-Voltage Protection
Hiccup Mode Over-Current Protection
Low Side FET Ron Sense ZCD
Selectable Cycle-by-Cycle Current Limit
180º Out-of-Phase SYNCO Pin and Dither

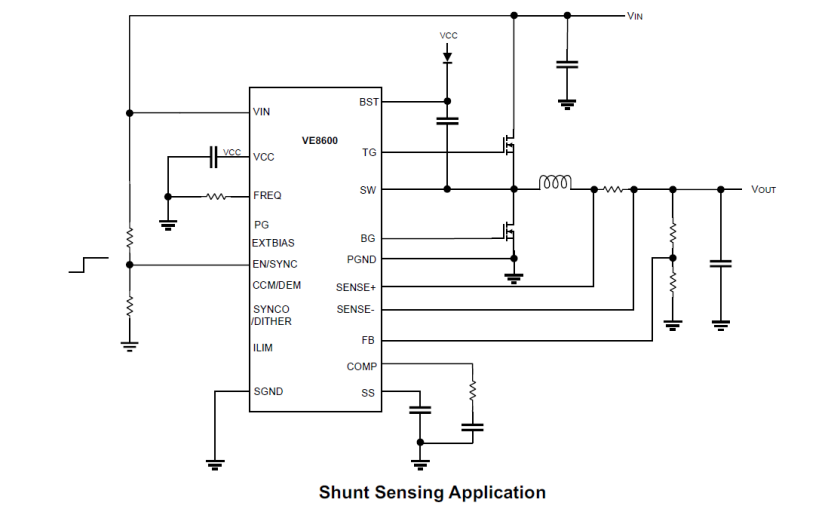

Application Diagrams
