High Sensitivity Speed Sensor IC with Dual Quadrature Outputs
Product Description
SC9632VB
Package：SIP4
SC9632 is a differential Hall Effect sensor IC with two independent channels providing quadrature outputs. The device provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order to achieve a stable duty cycle.
Features & Benefits
Large air gap
Reduced power consumption 6.5mA
Low start-up voltage 3.8V
Reverse-current protection in VDD PIN
Over-voltage protection in all PIN
Accurate true zero-crossing switch-point
Operating temperature range -40°C to 150°C
South and North pole pre-induction possible
Two independent digital quadrature A/B
Output protection against electrical

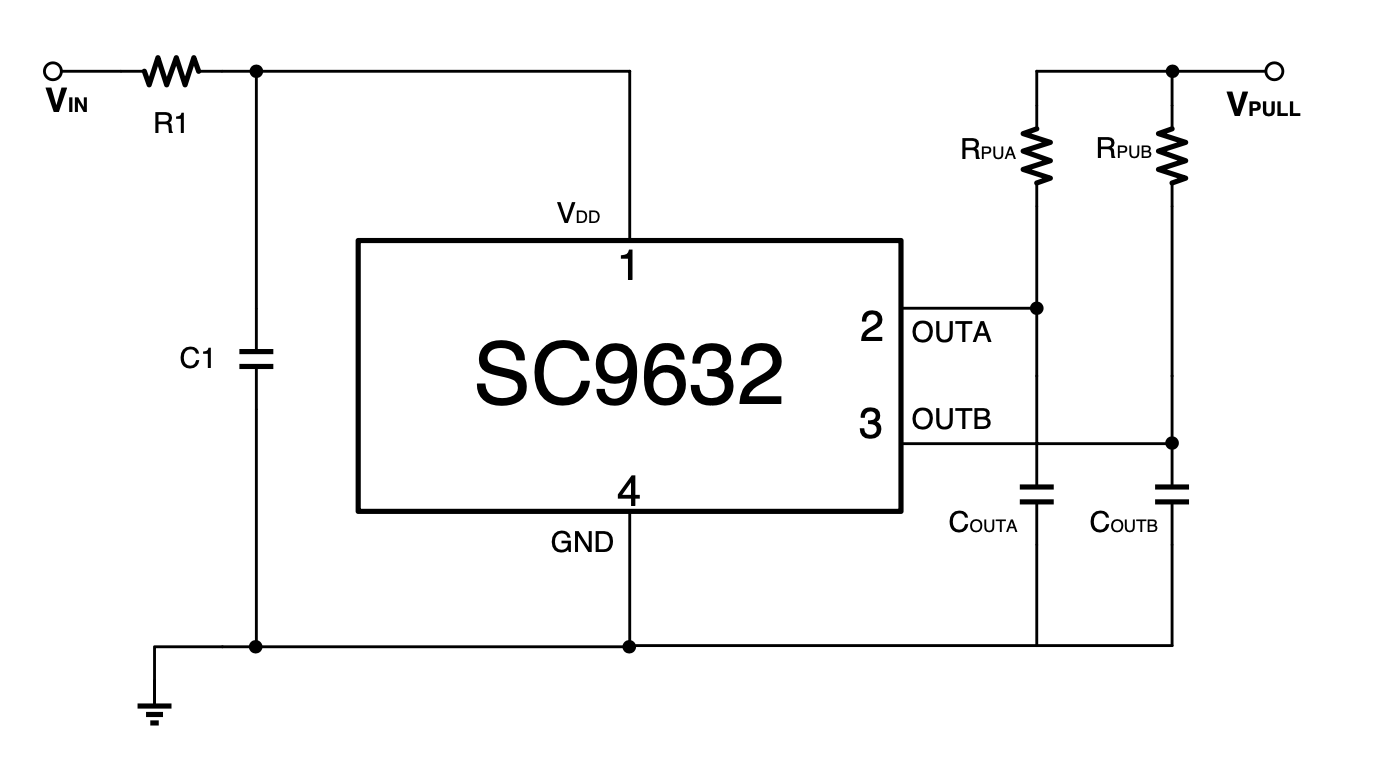

Application Diagrams
