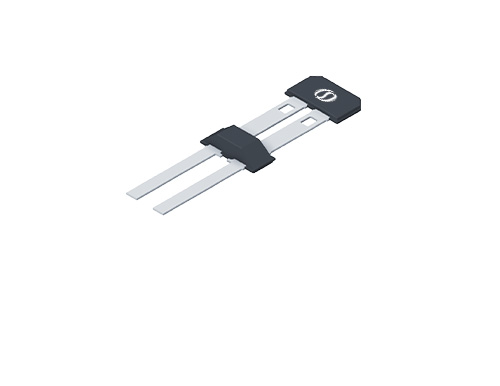

Package：TS2
Product Description
SC9685TS
SC9685 is an integrated, active magnetic field sensor for transmission speed applications based on Hall technology. The basic function of this chip is to measure the speed and direction of a magnet pole wheel.
Features & Benefits
AEC-Q100 Grade 0
Optional pulse width PWM interface
ISO26262 ASIL-B Level
Integrated EMC capacitor in package
Visible adaptive hysteresis types
South and North pole pre-induction possible
Optional pulse width PWM interface
Operating temperature range -40℃ to 150℃

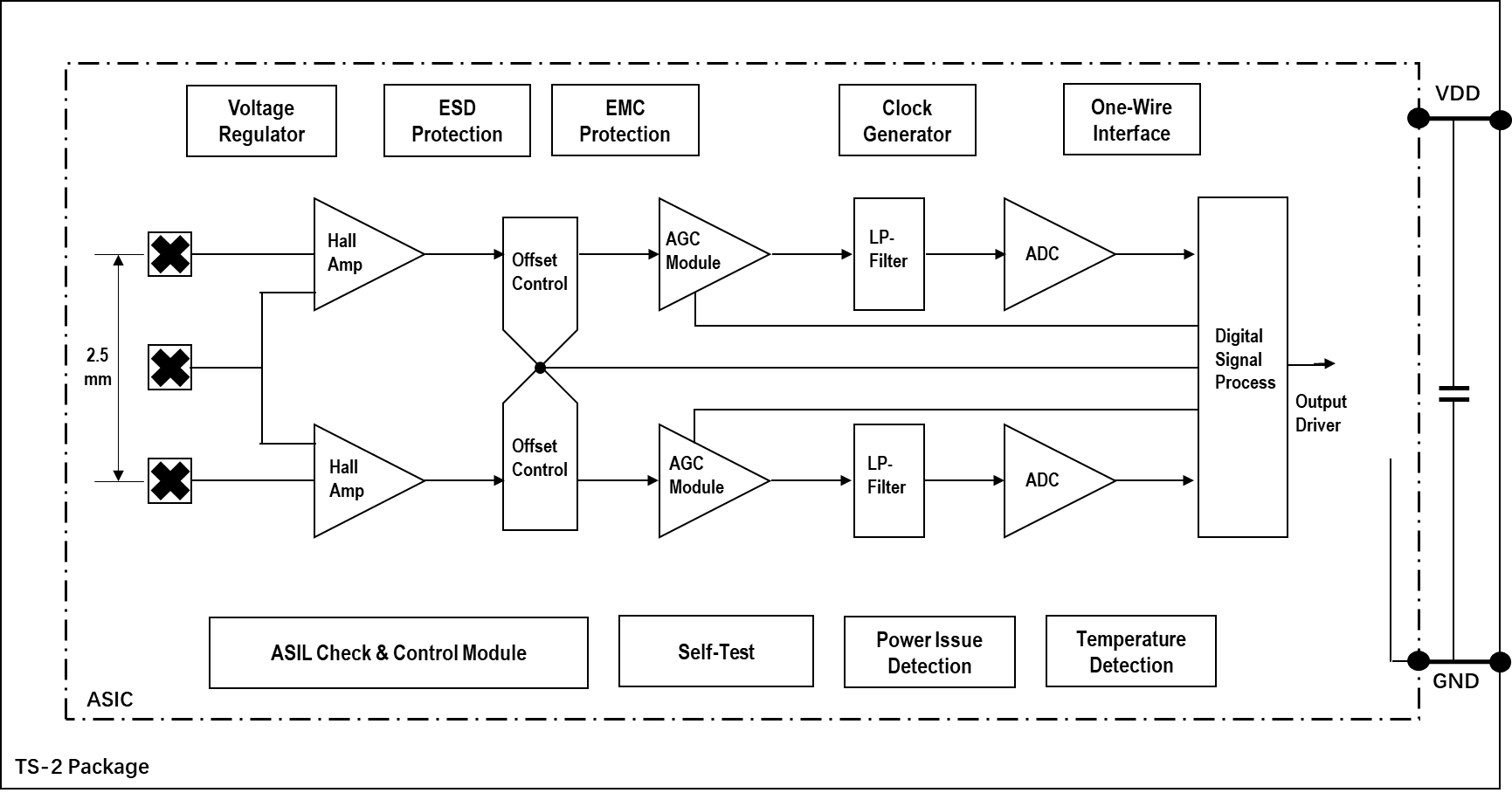

Application Diagrams
Documents & Resources
